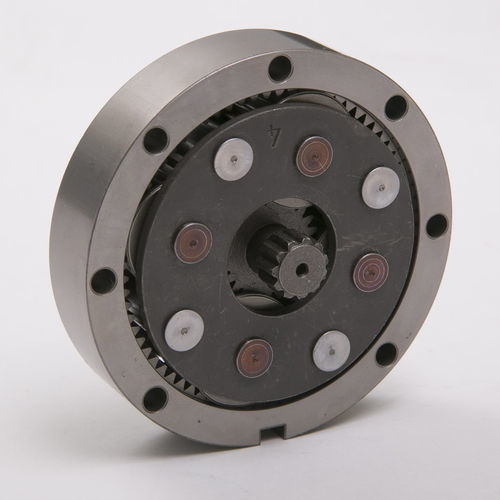

Planetary gear reducer LGU75-M12coaxialpinion shaftsplined
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- splined, pinion shaft
- Torque
- 20 - 50 Nm
- Configuration
- compact, modular
- Number of stages
- single-stage, multi-stage
- Performance
- high-performance, low-noise, high-speed
- Applications
- machine, for machine tools, for electric motors, for industrial applications, for actuators, for machines, for material handling equipment, for DC motors, for vehicles, for automotive applications
- Other characteristics
- custom-made, high-quality
- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 2,500 rpm
(15,707.9633 rad.min-1)- Power
Min.: 4.61 kW
(6.27 hp)Max.: 5.23 kW
(7.11 hp)- Gear ratio
Min.: 4 unit
Max.: 5 unit
- Weight
500 g
(17.64 oz)
Description
LGU75-M12 high-spec high-speed rotation Planetary Gear Reducer
Features:
-High rotation speed
-High efficiency
-Compact design
-High design freedom
-Stackable for flexible reduction ratio
Specifications:
-Output Torque: 22~25Nm
-Input Speed: 10000rpm
-Output Speed: 2000rpm, 2500rpm
-Ratio: 4:1, 5:1
-Weight: 500g
-Material: Machined Steel
Options:
-Available Models: LGU75-M12 series, reduction ratio 4:1, 5:1.
-Input Shape: Serration Shaft
-Output Shape:
-Price: Calculated based on model and lot size.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-High rotation speed
-High efficiency
-Compact design
-High design freedom
-Stackable for flexible reduction ratio
Specifications:
-Output Torque: 22~25Nm
-Input Speed: 10000rpm
-Output Speed: 2000rpm, 2500rpm
-Ratio: 4:1, 5:1
-Weight: 500g
-Material: Machined Steel
Options:
-Available Models: LGU75-M12 series, reduction ratio 4:1, 5:1.
-Input Shape: Serration Shaft
-Output Shape:
-Price: Calculated based on model and lot size.
Other:
-Brand Name: Matex
-Origin: Japan
VIDEO
Catalogs
LGU75-M12
2 Pages
