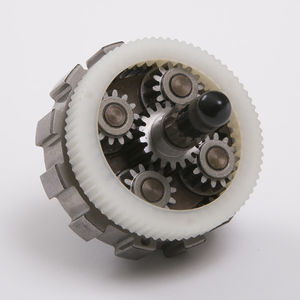

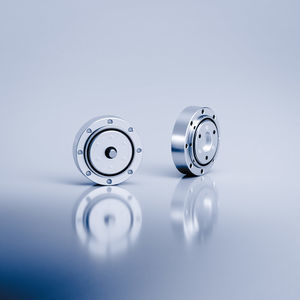

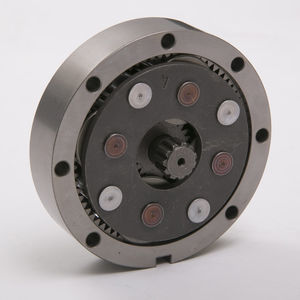

Planetary servo-gearbox coaxialsolid-shaft5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 5 - 10 Nm
- Mounting
- flange-mounted
- Configuration
- compact
- Number of stages
- single-stage, multi-stage
- Performance
- high-precision, low-backlash, high-efficiency
- Applications
- for servo motors, for industrial applications, for automation, for machine tools, for robots, for medical devices
- Other characteristics
- custom-made
- Rotational speed
5,000 rpm
(31,415.9265 rad.min-1)- Backlash
Min.: 0 rad
- Gear ratio
9 unit
Description
Precision Gearhead for Servo Motors
Features:
-High precision
-Low Backlash
-Up to 93% efficiency!
Specifications:
-Diameter: 78mm
-Output Torque: 9.7Nm
-Input Speed: 5000rpm
-Output Speed: 555rpm
-Ratio: 9:1
-Backlash: 15arcmin
Options:
-Available Models: Customizable
-Input Shape: Customizable
-Output Shape: Customizable
-Price: Calculated based on lot size.
-MOQ: for standard specifications: none.
-MOQ for customized variant: 500pcs.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-High precision
-Low Backlash
-Up to 93% efficiency!
Specifications:
-Diameter: 78mm
-Output Torque: 9.7Nm
-Input Speed: 5000rpm
-Output Speed: 555rpm
-Ratio: 9:1
-Backlash: 15arcmin
Options:
-Available Models: Customizable
-Input Shape: Customizable
-Output Shape: Customizable
-Price: Calculated based on lot size.
-MOQ: for standard specifications: none.
-MOQ for customized variant: 500pcs.
Other:
-Brand Name: Matex
-Origin: Japan
