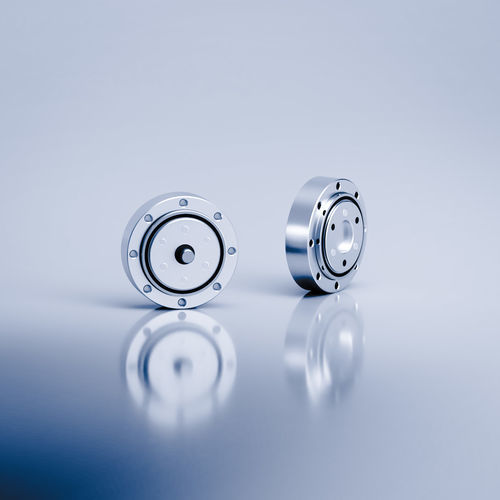

Planetary gear reducer coaxialsplined1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- splined
- Torque
- 1 - 5 Nm, 5 - 10 Nm
- Configuration
- compact, modular
- Number of stages
- single-stage, multi-stage
- Performance
- precision, high-efficiency, low-backlash
- Applications
- for robots, for automation, for medical devices, for actuators, for AGV, for vehicles, for automotive applications
- Other characteristics
- custom-made, with bearings
- Rotational speed
Max.: 5,000 rpm
(31,415.9265 rad.min-1)Min.: 10 rpm
(62.8319 rad.min-1)- Gear ratio
Max.: 5 unit
Min.: 4 unit
- Weight
Max.: 200 g
(7.05 oz)Min.: 110 g
(3.88 oz)
Description
Low-Backlash Planetary Gear Module
Features:
-Module with built-in bearings
-Extremely low backlash (for module type)
-High efficiency
-Compact
-Low noise
Specifications:
Outer Diameter: φ42mm, φ60mm
Input Rotation: 4000rpm, 5000rpm
Output Rotation: 1000rpm
Torque: 4~8Nm
Backlash: 30arcmin
Weight: 110~200g
Options:
-Available Models: 4 different types (see catalog)
-Input Shape: Shaft (connection freely selected by customer)
-Output Shape: Indentation (for holding in place customer-selected output method)
-Price: Calculated based on lot size.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-Module with built-in bearings
-Extremely low backlash (for module type)
-High efficiency
-Compact
-Low noise
Specifications:
Outer Diameter: φ42mm, φ60mm
Input Rotation: 4000rpm, 5000rpm
Output Rotation: 1000rpm
Torque: 4~8Nm
Backlash: 30arcmin
Weight: 110~200g
Options:
-Available Models: 4 different types (see catalog)
-Input Shape: Shaft (connection freely selected by customer)
-Output Shape: Indentation (for holding in place customer-selected output method)
-Price: Calculated based on lot size.
Other:
-Brand Name: Matex
-Origin: Japan
