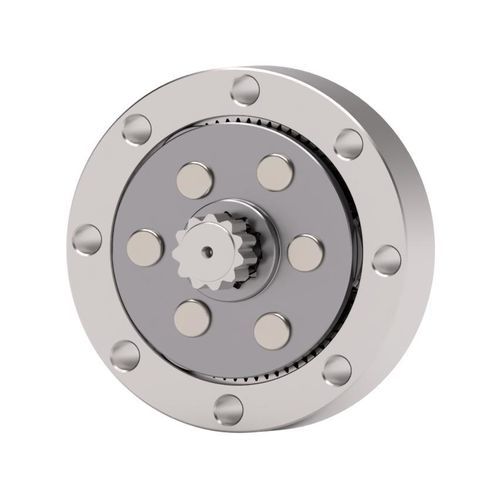

Planetary gear reducer LGU57-M8coaxialpinion shaft10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- pinion shaft
- Torque
- 20 - 50 Nm, 10 - 20 Nm
- Configuration
- compact, modular
- Number of stages
- single-stage
- Performance
- high-efficiency, low-noise, high-torque
- Applications
- for marine applications, for industrial applications, for automation, machine, for robots, for material handling equipment, for actuators, for height adjustment, for vehicles, for AGV, for conveyor, for machines, wheel, for automobiles
- Other characteristics
- custom-made, universal
- Rotational speed
Max.: 1,000 rpm
(6,283.1853 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Gear ratio
Max.: 5 unit
Min.: 3 unit
- Weight
Max.: 220 g
(7.76 oz)Min.: 208 g
(7.34 oz)
Description
LGU57-M series high-torque compact Planetary Gear Reducer
Features:
-High-torque
-Compact
-High efficiency
-High design freedom
-Stackable for flexible reduction ratio
Specifications:
-Output Torque: 20Nm
-Input Speed: 3000rpm, 4000rpm, 5000rpm
-Output Speed: 1000rpm
-Ratio: 3:1, 4:1, 5:1
-Weight: 208~220g
-Material: Machined Steel
Options:
-Available Models: LGU57-3MLD8, LGU57-4MLD8, LGU57-5MLD8 (see catalog)
-Input Shape: Serration Shaft
-Output Shape: Serration Hole
-Price: Calculated based on lot size.
Other:
-Brand Name: Matex
-Origin: Japan
Features:
-High-torque
-Compact
-High efficiency
-High design freedom
-Stackable for flexible reduction ratio
Specifications:
-Output Torque: 20Nm
-Input Speed: 3000rpm, 4000rpm, 5000rpm
-Output Speed: 1000rpm
-Ratio: 3:1, 4:1, 5:1
-Weight: 208~220g
-Material: Machined Steel
Options:
-Available Models: LGU57-3MLD8, LGU57-4MLD8, LGU57-5MLD8 (see catalog)
-Input Shape: Serration Shaft
-Output Shape: Serration Hole
-Price: Calculated based on lot size.
Other:
-Brand Name: Matex
-Origin: Japan
