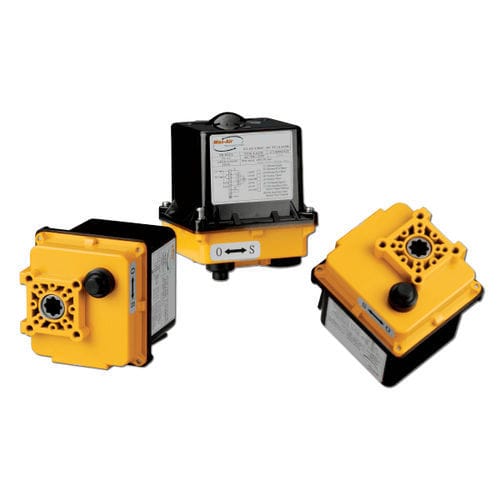

Electric valve actuator AE series90°three-phaseIP67
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- 90°
- Phase
- three-phase
- Protection class
- IP67
- Norms
- ISO
- Other characteristics
- modulating
- Torque
Max.: 170 Nm
(125.39 ft.lb)Min.: 35 Nm
(25.81 ft.lb)- Voltage
12 V, 24 V, 120 V, 220 V
- Ambient temperature
Max.: 140 °F
(60 °C)Min.: -14 °F
(-26 °C)- Rotation angle
90 °
- Operating time
Max.: 18 s
Min.: 1 s
- Weight
2 kg, 4 kg
(4.41 lb, 8.82 lb)
Description
The AE Series electric actuators come standard with a polycarbonate semi-transparent lid, LED position indication, auxiliary limit switches, and space heater. AE Series on/off actuators are available in a wide range of voltages and can be specially equipped with dual voltage, fast acting, or extended duty motors. AE Series modulating actuators are designed for ultimate flexibility and convenience, with selectable 4-20mA or 0-10V input and outputs, sensitivity adjustment, and easy position stop adjustment.
