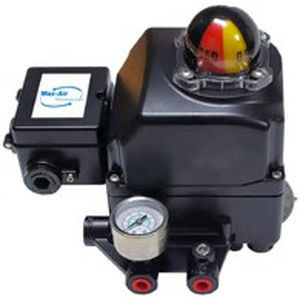

Electro-pneumatic valve positioner PET seriesrotarydouble-actingIP66
Add to favorites
Compare this product
Characteristics
- Type
- electro-pneumatic
- Movement
- rotary
- Configuration
- double-acting
- Protection class
- IP66
- Other characteristics
- NAMUR, VDI/VDE 3845, low temperature, spring-return
- Pressure
Max.: 100 psi
Min.: 20 psi
- Ambient temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)- Rotation angle
Max.: 90 °
Min.: 0 °
- Weight
6 lb
(2.72 kg)
Description
PET series positioners are double acting & spring return units with 4-20 mA input signal for proportional control of rotary and linear actuators.
The positioner operates on the force-balance principle by comparing standard control signal transmitted with the angular rotation of the stem.
FEATURES
• Same unit for double acting & spring return actuators
• Easy conversion from Fail Open & Fail Closed
• Easy & precise calibration w/ SPAN & ZERO adjustments
• Fast response time & excellent stability
• Vibration resistance design
• By-pass valve (A/M switch) installed
• Material: aluminium die casting
• Split Range Available
• Universal NAMUR VDI/VDE3845 Mounting Bracket Included (30x80mm, 20/30/50mm Height)
