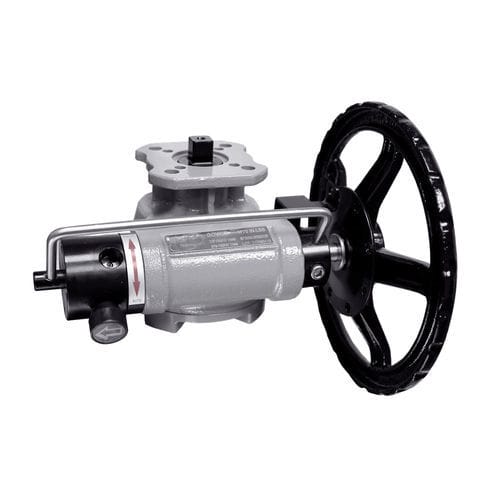

Manual valve actuator GOW series rotaryIP67ISO
Add to favorites
Compare this product
Characteristics
- Type
- manual
- Movement
- rotary
- Protection class
- IP67
- Norms
- ISO
- Other characteristics
- with handwheel
- Torque
Max.: 6,999 Nm
(5,162.2 ft.lb)Min.: 199 Nm
(146.77 ft.lb)- Ambient temperature
Max.: 248 °F
(120 °C)Min.: -40 °F
(-40 °C)- Rotation angle
Max.: 90 °
Min.: 0 °
- Weight
Max.: 243 lb
(110.22 kg)Min.: 12 lb
(5.44 kg)
Description
Max-Air offers a declutchable override gear with triple epoxy coated IP67 housing mounts between ISO 5211 valve and actuator interfaces. It features an easy declutch mechanism, integrated block and bleed capability and lockout/tagout holes. GOW Series comes standard with a female double square output drive, which directly couples to square valve stems, or quickly adapt to smaller square drives, or double-D and keyed drives with the use of adapter bushings.
Available Options
• Chain Wheel Operators
• Stem Extensions
• Square Operating Nuts
• Custom Sized Handwheels
• Standard Lockout Devices
• Limit Switch Adaptation
