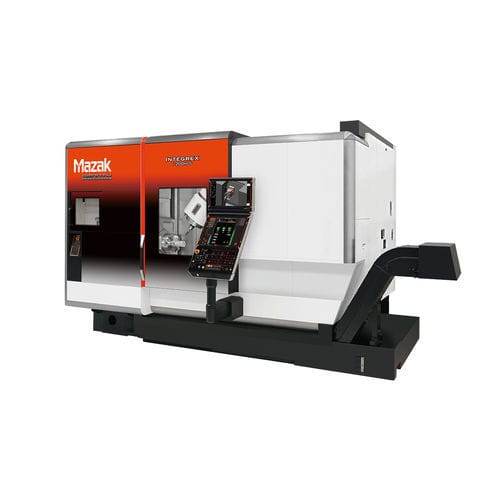

CNC milling-turning machine INTEGREX i-H

universal5-axisspindle

The flat design of the machine body front greatly improves accessibility and integration with automation systems such as articulated robots and stockers. Increased spindle power and high-rigidity machine structure. Long Y-axis stroke for expanded machining capability MAZATROL SmoothAi for AI, digital twin and automation Enhanced machine design to easily incorporate automation Flat design of the machine body front for easy adaptation to automation The standard compact milling spindle is 17% shorter in overall length than a conventional milling spindle, increasing the machining area with minimum interference. X-axis and Y-axis strokes are expanded to secure large machining area. Machine construction for high-accuracy machining Based on structural analysis, the best machine structure combining turning centres and machining centres was designed to achieve stable, high-accuracy machining over a long period. High-accuracy machining is achieved over the entire Y-axis stroke. Stable high-accuracy machining Ai Thermal Shield Based on spindle speed and temperature of the machine, Ai Thermal Shield suppresses changes in the cutting edge position. Stabilises continuous machining accuracy through meticulous machine control that takes into account temperature changes, machine position, coolant ON/OFF and other factors. Furthermore, by accumulating and learning about the data from subsequent measurements, thermal displacement compensation can be optimised for each machining environment to stabilize machining accuracy. Heat displacement control Spindle temperature control Temperature-controlled cooling oil is circulated around the spindle bearings and headstock.
