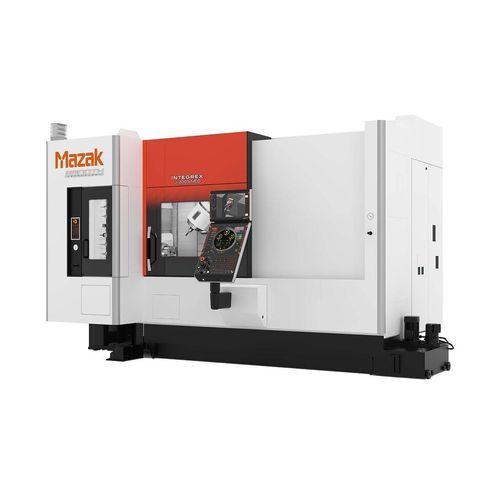

CNC milling-turning center INTEGREX j-200 NEO

automaticautomated loading/unloadinghigh-performance

The INTEGREX j-200 NEO is an entry-level multitasking machine offering exceptional milling versatility. It allows cutting in all directions with a single tool, reducing the number of tools required. The B-axis can be indexed every 0.0001°, providing a wide range of machining options. The main spindle features a high-power, high-torque built-in motor spindle. The CNC system includes an 'Energy Saving' function to visualize energy consumption and regenerative power. Easy automation is possible with the Ez LOADER, an automation cell with a collaborative robot. Advantages over a turret lathe include: - Insufficient number of tools - Difficult interference control with large parts - Expensive milling tool holders High-performance specifications for high productivity: - Milling spindle: 12000 rpm, 18.5 kW, 57.3 N·m - Main spindle: 5000 rpm, 18.5 kW, 326 N·m Technical features: - Model: INTEGREX j-200 NEO - Type: Entry-level multitasking machine - Chuck size: 8″ - Max. machining diameter: ø 500 mm - Max. machining length: 500 mm / 1,016 mm - Energy-saving CNC system - Automation: Ez LOADER compatible
