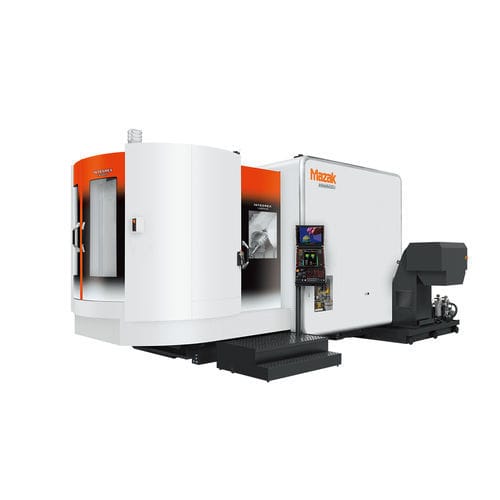

CNC turning-milling center INTEGREX i-V

3-axisspindlehigh-speed

Multi-tasking function including turning enhances productivity Integrated with various types of automation systems, including large-scale systems available Highly rigid machine structure for stable high-accuracy machining Linear roller guides utilised on all axes Linear roller guides with excellent rigidity are utilised in the X-, Y- and Z-axes to achieve powerful cutting and high-accuracy machining. B-axis roller gear cam The backlash-free roller gear cam ensures high positioning accuracy, which is twice as good as the ISO standard over the entire 150 degree rotary range of B-axis. Cone coupling The pallet and table are clamped by cone couplings to ensure high-rigidity and high-repeatable positioning accuracy when changing pallets. Y-axis slant structure The slanted structure of the Y-axis roller guide mounting surface ensures stable machining by absorbing the cutting load during machining. Applications Name: Case Category: Vacuum chamber component Material: Aluminium Name: Housing Category: Energy industrial component Material: Steel Name: Knuckle Category: Automotive component Material: Aluminium Name: Planetary carrier Category: Construction machinery component Material: Cast iron Name: Housing Category: General machinery component Material: Aluminium
