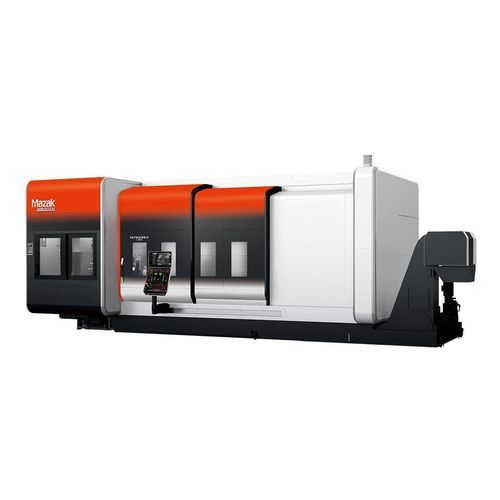

CNC milling-turning center INTEGREX i-500

horizontal3-axiscompact

Multi-tasking machine with a wide variety of specifications to meet your production requirementsEase of operation and compact design of the INTEGREX i series with a large machining area equivalent to that of the INTEGREX e-H seriesExceptional performance versatility - Special processes, such as gear machining, gear hobbing and deep drilling with end mills, are now incorporated on one machine, achieving process integration.A wide range of bed length types for large-diameter and long workpieces. A variety of tailstock, second spindle and lower turret specifications can be selected, as well as turning spindles and milling spindles. Optimal customisation is possible for machining in all industries.Universal1: 1500U2: 2500U3: 3000USecond spindleStandard - 4000 min-1High-output - 3300 min-1High-output and high-torque - 2500 min-1TailstockMT No.5 Built-in centreLower turret9D (turning/milling)The standard compact milling spindle is 17% shorter in overall length than a conventional milling spindle, increasing the machining range and reducing interference.Long Y-axis stroke : 430 mmMax. swing / Max. machining diameter : Φ 700 mmX-axis Travel: 845 mmY-axis Travel: 430 mmB-axis and C-axis achieve high-accuracy machining
