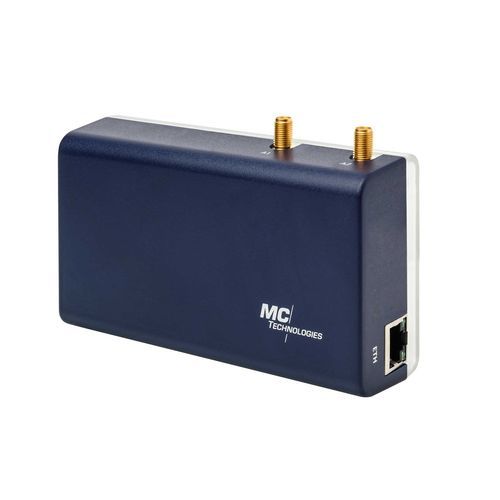

IoT gateway MC100

WLANGPRSGSM

Free programmable 4G LTE Terminal Quectel EC21-E module integrated Out of the box ready for mobile Internet communication OpenWrt 21 based Linux distribution, Kernel 5.4.154, optimized for the ARM-based MC100 Node-RED™ – flow-based programming tool pre-installed Supports comprehensive cloud and server protocols Configuration via web interface Technical specifications LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20 WCDMA (3G): Bands: 1, 5, 8 GSM/GPRS/EDGE (2G): Bands: 3, 8 Dimensions (W x H x D): 120 x 75 x 35mm Weight: approx. 135g Supply voltage: 10 to 30V DC Operating temperature: -20°C to +70°C Housing: plastic Mounting: Wall mounting / DIN rail mounting Controller, memory and operating system ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz 512 MB RAM 4 GB Flash OpenWrt Linux Programmable with C/C++, Python™, Java™, Node-RED™ or others Basic configuration via web interface, SSH Interfaces 10/100 MBit/s Ethernet Micro SD card, up to 64 GB (internal) Power: Plug-in screw terminal Mini SIM 2 SMA antenna connections
