USB adapter 160623

PCI interfacecommunication

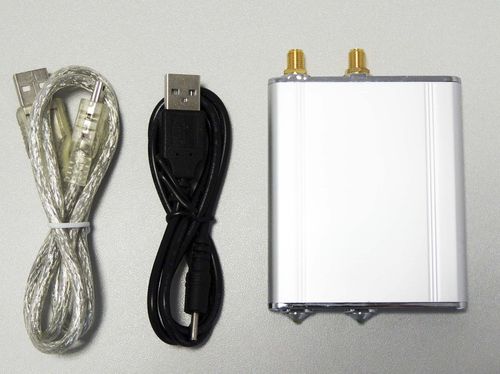

Mini PCI Express to USB Adapte With housing and external volt Function: USB mini type-B connection to desktop or notebook PC Supports USB interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC. Indicate ACCESS LED, POWER LED Support SIM card Push-Push connector Support U.FL/IPX to SMA pigtail RF cable adapter Specification: Housing dimensions: 82 x 68 x 11mm (L x W x H) PCI Express Mini Card Electromechanical Specification Revision 1.2 Universal Serial Bus (USB) Specification Revision 2.0 SIM connection for CDMA HSDPA/HSUPA, UMTS, GSM, GPRS, EDGE Antennas are not included in the scope of delivery
