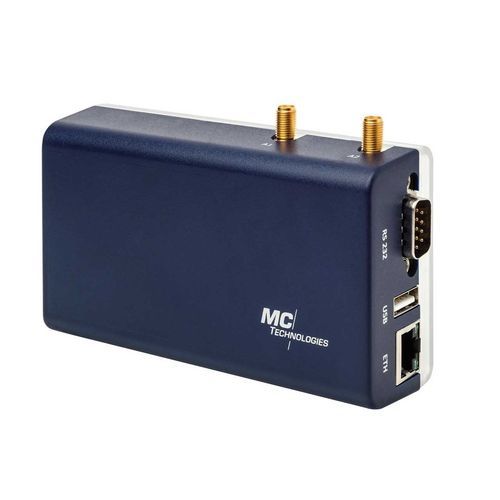

IoT gateway MC100WLANGPRSGSM
Add to favorites
Compare this product
Characteristics
- Type
- IoT
- Network
- Ethernet, WiFi, 4G, 3G, GPRS, GSM, WLAN, USB, RS-485, RS-232, CAN
- Other characteristics
- DIN rail, IP20, wall-mounted, GPS
- Transfer rate
Min.: 0 Mb/s
Max.: 42 Mb/s
Description
LTE (4G) Cat1: Bands: 1, 3, 5, 7, 8, 20
WCDMA (3G): Bands: 1, 5, 8
GSM/GPRS/EDGE (2G): Bands: 3, 8
Dimensions (W x H x D): 120 x 75 x 35mm
Weight: approx. 415g
Supply voltage: 10 to 30V DC
Operating temperature: -20°C to +70°C
Housing: plastic
Mounting: Wall mounting / DIN rail mounting
Controller, memory and operating system
ARM Cortex-A7 NXP i.MX 6 UltraLite, 528 MHz
512 MB RAM
4 GB Flash
OpenWrt Linux
Programmable with C/C++, Python™, Java™, Node-RED™ or others
Basic configuration via web interface, SSH
Interfaces
10/100 MBit/s Ethernet
USB 2.0
RS232
RS485
2 digital IN, 2 digital OUT
CAN 2.0B
GPS
WLAN
Micro SD card, up to 64 GB (internal)
Power: Plug-in screw terminal
Mini SIM
3 SMA antenna connectors
