IoT gateway MC100

WLANGPRSGSM

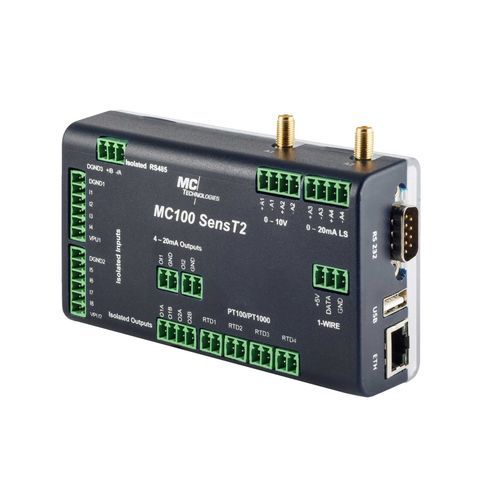

MC100 Gateway SensT2 GPS WLAN 4G Cat1 LTE IoT RS232, USB Quectel Module EC21-E embedded Technical specifications LTE Cat1 (4G): Band 1,3,5,7,8 and 20 HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all bands with diversity GSM/GPRS/EDGE (2G): Band 3.8 Dimensions (W x H x D): 120 x 75 x 35mm Weight: approx. 183g Supply voltage: 8 to 30V DC Operating temperature: -20°C to +70°C Housing: plastic Mounting: Wall mounting / DIN rail mounting Controller, memory and operating system: ARM Cortex-A7, 528 MHz controller 512 MB RAM 4 GB Flash OpenWrt Linux Programmable with C/C++, Python™, Java™, Node-RED™ or others Basic configuration via web interface, SSH Interfaces: 10/100 MBit/s Ethernet USB 2.0 2 digital IN / 2 digital OUT RS232 2 x RS485 (1x galvanically isolated) CAN 2.0B 8 digital IN 2 digital OUT 2 anlaog IN current 4-20mA 2 analog IN voltage 0-10V 2 analog OUT 4-20mA 4 PT100/PT1000 1-Wire BUS GPS WLAN Micro SD Card, up to 64 GB (internal) Power: plug-in screw terminal Mini SIM 4 SMA antenna connectors
