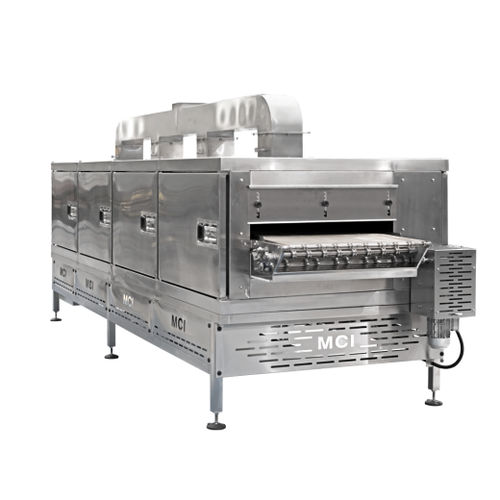

The VLK G80/400 oven is synonymous of operational safety, economy and high quality. With robustness and high production, the G80/400 provides uniform baking of various products. It has 4 modules with independent temperature and ventilation control.
Production Capacity
500 kg/h
*Approximately
Type of gas
LPG
*1.8 to 2.2 Bar (kgf/cm²)
Gas consumption
LPG from 3 to 4 kg/h
Baking chamber
Production area of 800x4.000mm
*Carbon steel completely coated in stainless steel 304 and isolated.
Dimensions of the baking chamber
Belt width: 800 mm
Inlet opening: 800 mm
Outlet opening: 800 mm
Heating time
5 to 10 minutes
Conveyor speed
6.5 to 8.7 rpm, allowing the product to remain in the oven for 3 to 4 minutes
Panel
Electric
Safety and quality
All MCI equipment is within safety standards, we put production quality and safety first.
