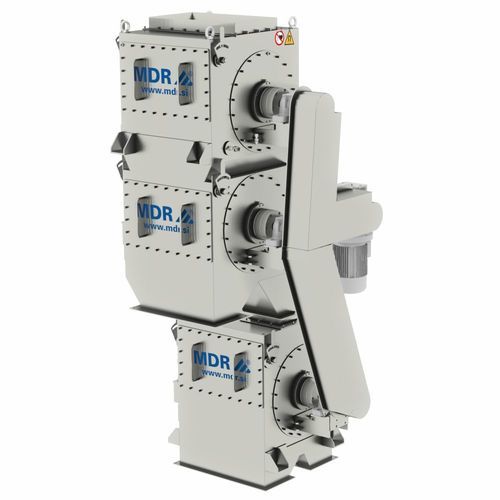

Non-ferrous metal separator MB-S AL

magnetic drumfor production linesfor the recycling industry

Product description
The MB-S AL magnetic drum separator is a multi-drum system designed to extract ferromagnetic particles from aluminium swarf under heavy-duty conditions. It integrates three high-intensity magnetic drums and a special labyrinth seal to protect the magnetic core from dust and high process temperatures up to 300 °C. The configuration is optimised for installation at the exit of aluminium slag dryers to maximise discharged material purity.

Magnet technology and operation
The drums use high-temperature Samarium Cobalt magnets (Sm2Co17 32H) rated to 350 °C with a peak magnetic intensity of 10,500 Gauss. The first drum targets the primary removal of ferromagnetic inclusions from the swarf, while the following drums reduce aluminium carry-over in the discharged material, improving downstream product quality and reducing contamination risk.

Applications
Engineered for aluminium swarf and slag processing in industrial environments where dust and elevated temperatures are present. Typical use includes positioning at the outlet of aluminium slag dryers and material conveyors to ensure minimal ferromagnetic contamination in final streams.

Technical characteristics / specifications

• Model: MB-S AL
• Configuration: three high-intensity magnetic drums
• Magnet type: Samarium Cobalt (Sm2Co17, 32H)
• Magnet temperature rating: up to 350 °C
• Operational temperature protection (labyrinth seal): up to 300 °C
• Magnetic intensity: 10,500 Gauss
• Primary function: first drum removes ferromagnetic particles from aluminium swarf
• Secondary function: subsequent drums minimise aluminium waste in discharged material
• Typical installation point: exit of aluminium slag dryer
• Designed for: heavy-duty industrial, dusty and high-temperature environments
