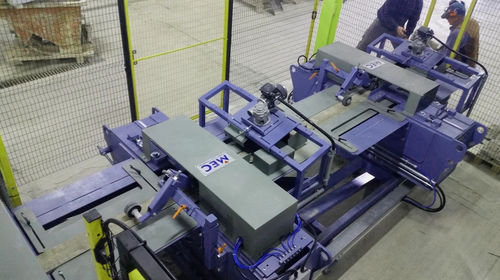

Marble slab stone splitting machine T2

Overview
The Horizontal T2 is a two-head horizontal pitching machine designed to pitch both faces of natural stone slabs in a single step, producing thin veneers and wall claddings with one split face visible.

Main functionality
The plant performs automatic feeding and automatic splitting cycles. It is engineered to process different natural and artificial stones while maintaining a continuous production flow.

Materials

• Sandstone
• Marble
• Granite
• Quartzite
• Concrete

Performance
Typical production: up to 5–6 linear meters per minute in general operation. When both splitting heads are used to pitch the piece on both sides, achievable output reaches approximately 16–19 pieces per minute, depending on material and piece dimensions.

Piece dimensions
WIDTH OF THE PIECE: from min 50 mm to max 300 mm
LENGTH OF THE PIECE: max 1000 mm
THICKNESS OF THE PIECE: from min 20 mm

Technical specifications

• Machine type: Two-head horizontal pitching machine
• Operation: Pitches both sides of the slab in a single step
• Feeding: Automatic feeding cycle
• Splitting cycle: Automatic splitting cycle
• Intended products: Thin veneer products and wall claddings (one face split side in view)
• Applicable materials: Sandstone, marble, granite, quartzite, concrete
• Production capability: Up to 5–6 linear meters per minute (general); up to 16–19 pieces per minute with both sides pitched (material-dependent)
• Piece width range: 50 mm – 300 mm
• Piece maximum length: 1000 mm
• Piece minimum thickness: 20 mm
