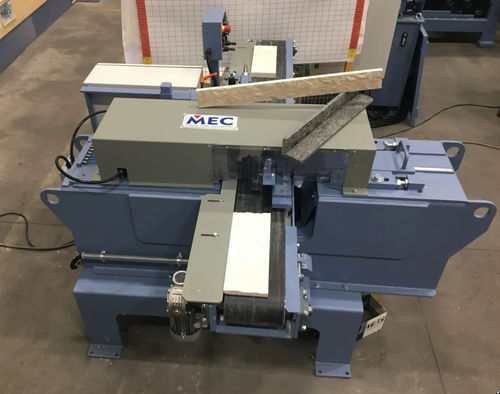

Stone stone splitting machine T1

for marble slab

Product overview
The Horizontal T1 is a single-head pitching machine engineered to pitch natural stone pieces to produce thin veneer and wall claddings with one split face exposed. It is suitable for a wide range of materials from softer sedimentary stones to very hard rocks.

Key capabilities

• Pitches natural stone pieces for thin veneer and wall claddings
• Automatic feeding and automatic splitting cycle
• Optional return conveyor belt to return the piece pitched on one side to the operator for loading and processing the other side
• Production rate: 2–4 linear meters per minute (with piece pitched on one side)

Suitable materials

• Sandstone
• Marble
• Granite
• Quartzite
• Concrete

Operation notes
The unit is compact and designed for continuous automatic feeding and splitting. It enables efficient production with pieces pitched on one side; with the optional return conveyor the operator can more easily reload pieces to pitch the opposite side.

Characteristics / technical specifications

• Machine type: Single-head pitching machine
• Production speed: 2–4 linear meters per minute
• Width of the piece: from min. 50 mm to max. 300 mm
• Length of the piece: free
• Thickness of the piece: from min. 20 mm
• Feeding: automatic
• Cycle: automatic splitting cycle
• Optional accessories: return conveyor belt to return pitched piece to operator
• Materials processed: sandstone, marble, granite, quartzite, concrete
