Stone stone splitting machine Side

for marble slabceramic

Overview

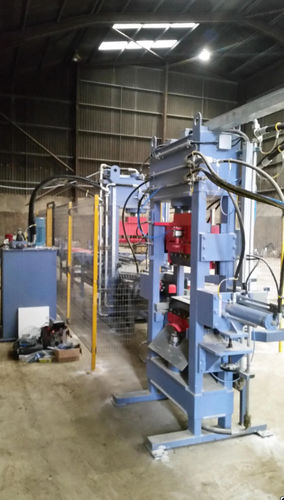

The Pitching Side is a machine with a closed, vertical structure equipped with 4 fixed blades that finish the edges of a split stone or concrete block, producing a rounded (domed) effect on the split face. This edge finish is particularly sought after by architects and designers.

Operation

• Operator loads one stone or concrete block at a time onto the work bench.
• The operator starts the splitting cycle via the control panel; the machine performs the splitting and edge finishing automatically.
• Machine is adjusted and positioned manually; the splitting cycle itself is fully automatic.

Machine capacities (maximums)
Max splitting width of the piece: 600 mm
Max splitting height of the piece: 300 mm
Max loading thickness of the piece: 300 mm

Additional media
Product page includes a photographic gallery and a demonstration video showing the machine in operation.

Characteristics / technical specifications

• Structure: closed, vertical
• Blades: 4 fixed blades for edge finishing
• Finish effect: rounded / domed effect on split face
• Operation mode: manual loading and adjustment; automatic splitting cycle
• Max splitting width: 600 mm
• Max splitting height: 300 mm
• Max loading thickness: 300 mm
