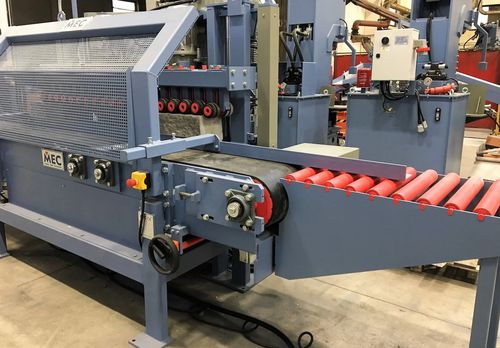

Edging machine One

Product overview

Pitching One is a compact automatic machine for edge finishing of split stone blocks. It features four rotating heads — two with vertical action and two with horizontal action — that refine split block edges to produce a rounded/domed profile. The machine runs a continuous finishing cycle so pieces are processed one after another. Unlike the Pitching Side, Pitching One provides fully automatic movement and processing for unattended, consistent throughput.

Main features

• Compact automatic plant for finishing edges of split blocks
• 4 rotating heads: 2 vertical action, 2 horizontal action
• Continuous finishing cycle for piece-by-piece processing
• Produces rounded / domed edge profiles on stone blocks
• Fully automatic movement and processing for stable high productivity

Applications

• Edge finishing of split wall stones and blocks
• Creation of rounded / domed edges on natural stone blocks

Technical specifications

• Maximum splitting height: 400 mm
• Maximum splitting width: 400 mm
• Maximum splitting length: 1200 mm
• Pitching cycle: continuous
