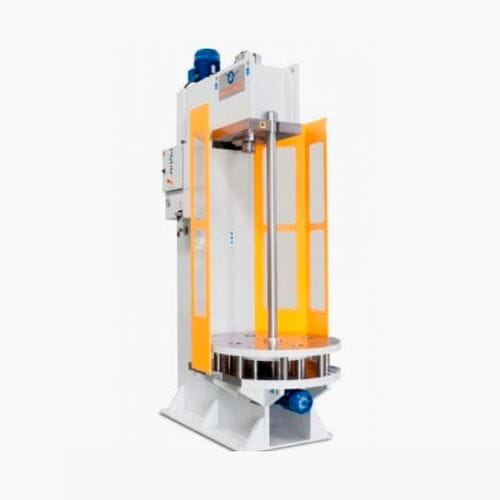

Hydraulic press PDV100 4418formingvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Other characteristics
- vertical
- Force
100 tf
- Opening
1,600 mm
(63 in)- Stroke
500 mm
(19.685 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
4.5 mm/s
- Weight
4,300 kg
(9,480 lb)- Overall length
1,200 mm
(47 in)- Overall width
1,900 mm
(75 in)- Overall height
3,520 mm
(139 in)
Description
Lower plate (mm)
Ø 1100
Engine power (HP)
7,5
Approximation speed (mm/sec)
10
