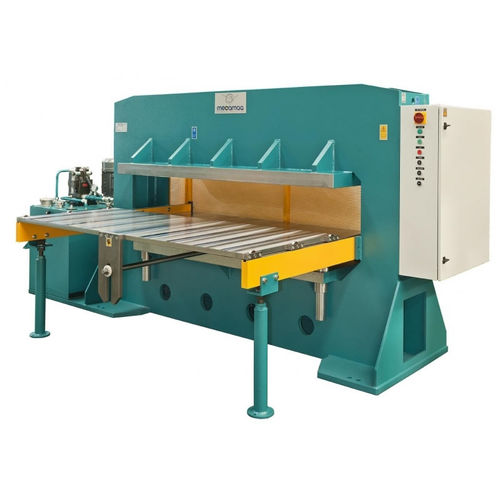

Hydraulic press PDV-150electricformingdouble
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, electric
- Function
- forming
- Structure
- double, 4-column, with heating plates
- Other characteristics
- hot, custom-made, double-action
- Opening
1,600 mm
(63 in)- Stroke
850 mm
(33.465 in)- Table width
850 mm
(33 in)- Table length
2,030 mm
(80 in)- Max. pressure
310 bar
(4,496 psi)- Working speed
4.5 mm/s
- Hydraulic pump power
7.5 kW
- Weight
4,300 kg
(9,480 lb)- Overall length
1,200 mm
(47 in)- Overall width
1,900 mm
(75 in)- Overall height
3,520 mm
(139 in)
Description
Press with hot plates and removable lower plate, reference PDV-150.
Upper plate guided by 4 cylindrical columns.
Approximation speed: 25 mm/sec.
Regulation time of pressing.
Engine power: 10 Hp.
Heated plates with electric system.
Temperature regulation from 100ºC to 200ºC.
Installed power: 20 Kw (for heat plates).
Application: for manufacture industry of joints.
Features
Lower plate (mm) - Ø 1100
Engine power (HP) - 7,5
Approximation speed (mm/s) - 10
