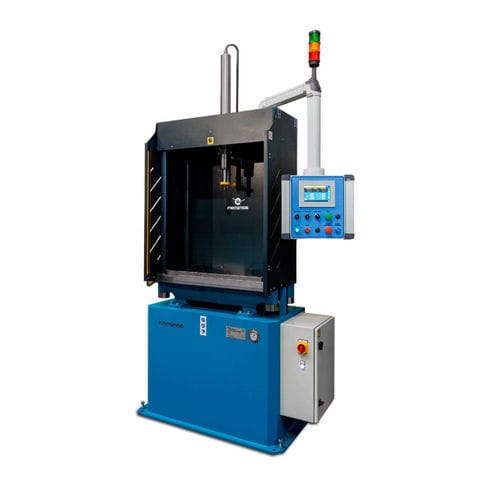

Hydraulic press PDV8 5519formingvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Other characteristics
- vertical
- Force
8 tf
- Opening
700 mm
(28 in)- Stroke
700 mm
(27.559 in)- Table width
400 mm
(16 in)- Table length
850 mm
(33 in)- Max. pressure
280 bar
(4,061 psi)- Working speed
5 mm/s
- Weight
1,400 kg
(3,086 lb)- Overall width
1,450 mm
(57 in)- Overall height
2,850 mm
(112 in)
Description
Guides Ø (mm) -
40
Lower plate (mm) -
850x400
Engine power (HP) -
2
Approximation speed (mm/s) -
180
Depth (mm.) -
650
