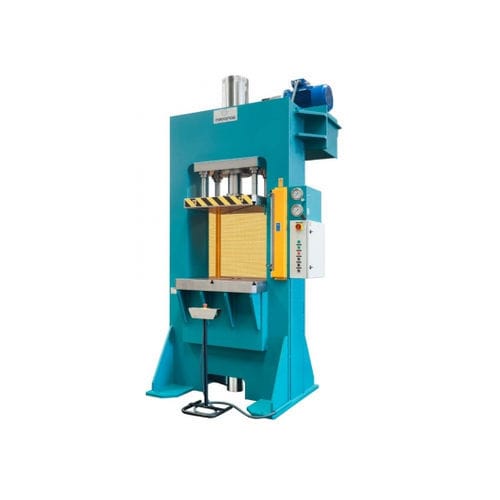

Hydraulic press PDM-160forming4-columncustom-made
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Structure
- 4-column
- Other characteristics
- custom-made, double-action
- Force
400 tf
- Opening
1,100 mm
(43 in)- Stroke
500 mm
(19.685 in)- Table width
1,000 mm
(39 in)- Table length
1,500 mm
(59 in)- Max. pressure
270 bar
(3,916 psi)- Working speed
1.5 mm/s
- Weight
10,000 kg
(22,046 lb)- Overall length
2,300 mm
(91 in)- Overall width
1,300 mm
(51 in)- Overall height
2,900 mm
(114 in)
Description
Upper plate guided by 4 cylindrical columns.
Lower plate 1.000 x 1.000 mm.
Upper plate 900 x 800 mm.
Hydraulic group with pistons pump of variable flow.
Engine power: 15 Hp.
Hydraulic cushion with 60 Tm capacity with plate 550 x 550 mm.
