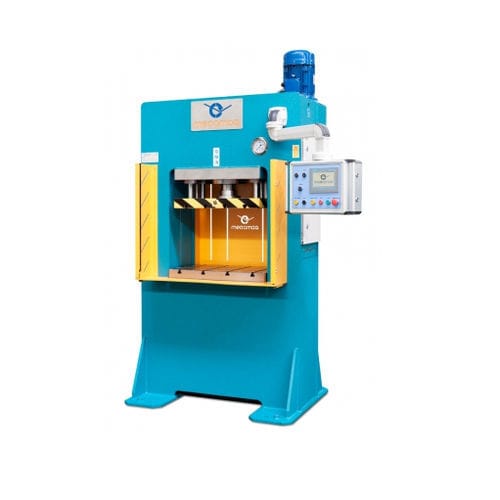

Hydraulic press PDM100R 4946forming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Opening
500 mm
(20 in)- Stroke
300 mm
(11.811 in)- Table width
500 mm
(20 in)- Table length
700 mm, 800 mm
(28 in, 31 in)- Max. pressure
290 bar
(4,206 psi)- Working speed
9 mm/s
- Weight
3,800 kg
(8,378 lb)- Overall length
1,350 mm
(53 in)- Overall width
1,000 mm
(39 in)- Overall height
2,720 mm
(107 in)
Description
Lower plate (mm) -
800X500
Upper plate (mm) -
700X500
Engine power (HP) -
10
Approximation speed (mm/s) -
120
