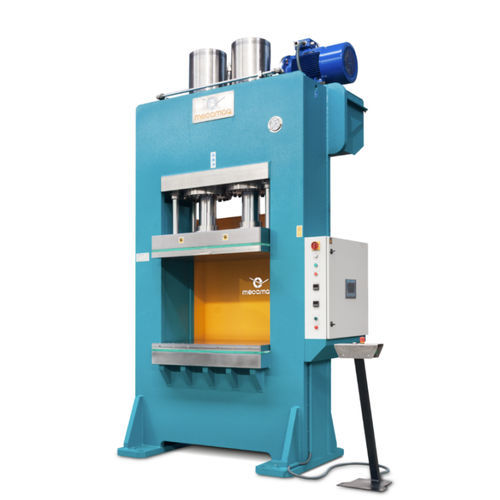

Hydraulic press PDM350 4751forming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- forming
- Force
350 tf
- Opening
1,000 mm
(39 in)- Stroke
1,000 mm
(39.37 in)- Table width
800 mm
(31 in)- Table length
1,100 mm
(43 in)- Max. pressure
320 bar
(4,641 psi)- Working speed
5 mm/s
- Weight
12,000 kg
(26,455 lb)- Overall length
1,950 mm
(77 in)- Overall width
1,350 mm
(53 in)- Overall height
4,000 mm
(157 in)
Description
Power (tons) - 350
Lower and upper plate (mm) - 1100x800
Engine power (HP) - 25
Approximation speed (mm/s) - 20
