Hydraulic press PCC8-S 5427
punchingC-frame

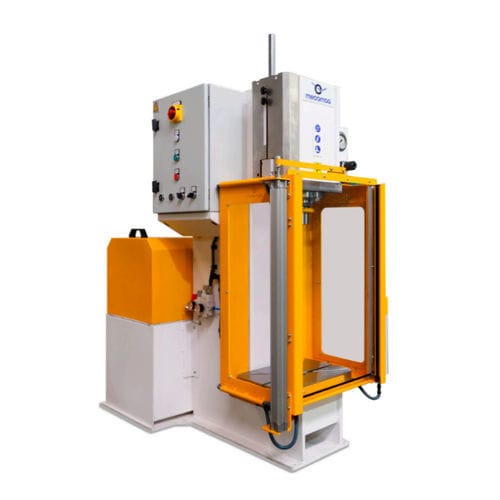

Hydraulic press - PCC8-S 5427 - Mécamaq - punching / C-frame
Hydraulic press - PCC8-S 5427 - Mécamaq - punching / C-frame
Add to favorites
Compare this product
Go to the Mécamaq website for more information

Characteristics

Operation
hydraulic
Function
punching
Structure
C-frame
Force

50 tf

Opening

140 mm
(6 in)

Stroke

100 mm
(3.937 in)

Table width

220 mm
(9 in)

Table length

310 mm
(12 in)

Max. pressure

350 bar
(5,076 psi)

Working speed

7.5 mm/s

Weight

650 kg
(1,433 lb)

Overall width

710 mm
(28 in)

Overall height

1,760 mm
(69 in)

Description

Lower plate (mm) - 400x300 Throat depth (mm) - 180 Engine power (HP) - 2 Approximation speed (mm/s) - 80 Depth (mm.) - 1380
