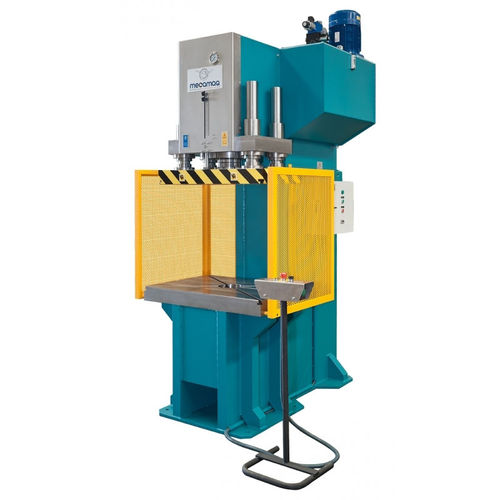

hydraulic press / punching / double-action / C-frame
PCC-150

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    punching

  • Other characteristics:

    double-action, C-frame

  • Opening:

    500 mm

Description

This device has a capacity of 150Tm with a double effect cylinder that has a stroke of 800 m. Four cylindrical columns with a diameter of 80mm guide the upper plate. The lower plate has dimensions of 1000 x 700mm and the upper plate is 900 x 500mm. The maximum opening between the plates is 1000mm. It operates at an approximate speed of 15mm/sec to produce a work speed of 4 mm/second. Its powerful 7.5 HP engine produces this high speed. The device weighs just 6 kg.
