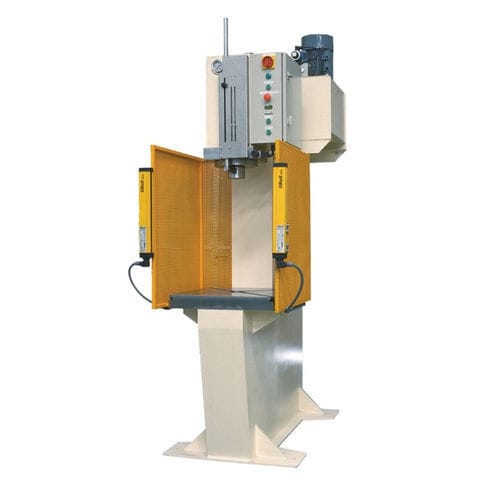

Hydraulic press PCC-40
punchingC-frame

hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
punching
Structure
C-frame
Force

398.6 kN

Opening

300 mm, 650 mm
(12 in, 26 in)

Description

40 Tn power. Machined cylinder end for holding tools with the removable hold-down plate. 200 mm cylinder course. 600 x 600 mm lower bench. 300 mm collar depth. 300 mm maximum opening between bench and cylinder. Approximation speed 140 mm x second. Operation speed 20 mm x second. 10 Hp engine power. Cylinder system with pre-filling valve for fast speed with slave cylinder. Course control via auto-reverse end of track. Pressure control via auto-reverse electrical pressure switch. Operation via CATEGORY-4 bimanual safety console. Machine weight: 2.500Kg.
