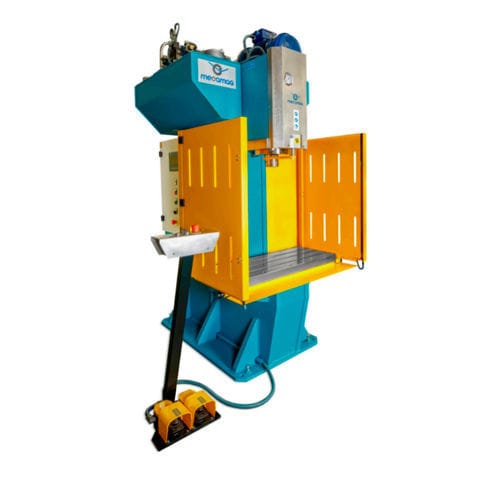

Hydraulic press PCC60R 5321punching
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- punching
- Force
60 tf
- Opening
700 mm
(28 in)- Stroke
400 mm
(15.748 in)- Table width
400 mm
(16 in)- Table length
1,000 mm
(39 in)- Max. pressure
300 bar
(4,351 psi)- Working speed
Max.: 20 mm/s
Min.: 3 mm/s
- Weight
3,000 kg
(6,614 lb)- Overall width
1,210 mm
(48 in)- Overall height
2,650 mm
(104 in)
Description
Lower plate (mm) - 1000x400
Throat depth (mm) - 250
Engine power (HP) - 15
Approximation speed (mm/s) - 50-20
Depth (mm.) - 1570
