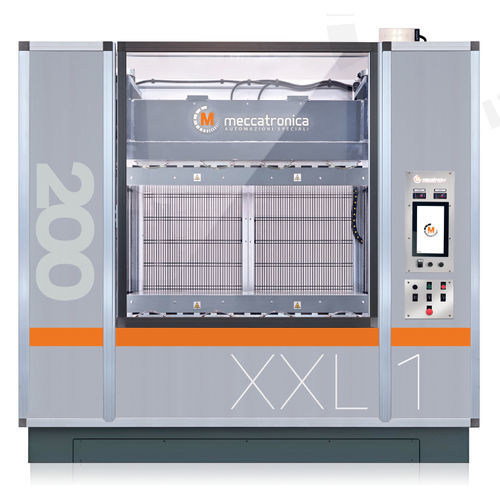

Electric press E-FORM XXL1-200
formingcompressionfor molding

Electric press - E-FORM XXL1-200 - MECCATRONICA AUTOMAZIONI - forming / compression / for molding
Electric press - E-FORM XXL1-200 - MECCATRONICA AUTOMAZIONI - forming / compression / for molding
Add to favorites
Compare this product
Go to the MECCATRONICA AUTOMAZIONI website for more information

Characteristics

Operation
electric
Function
forming, compression, for molding, for production
Applications
for the automotive industry, for industrial applications, for automotive parts, laboratory, for carbon fiber-reinforced plastic parts, for the aerospace industry, for composite materials, for sandwich panels, polyurethane panel, for automotive applications, for abrasive materials, for snowboards, ski, for thermosetting molding, for composite aeronautical parts, for polymer samples, for the aeronautical industry, high-volume, for thermoforming lines
Structure
compact, 4-column, with movable table
Control
automatic, PLC-controlled, hand-operated
Other characteristics
vertical, hot, with pressure regulator, high-pressure, smart
Force

2,000 kN

Max.: 2,000 kN

Min.: 500 kN

Opening

800 mm
(31 in)

Max.: 1,000 mm
(39 in)

Min.: 520 mm
(20 in)

Table width

1,500 mm
(59 in)

Table length

1,500 mm
(59 in)

Max.: 2,000 mm
(79 in)

Min.: 1,500 mm
(59 in)

Working speed

50 mm/s

Return speed

50 mm/s

Description

Robust and with a large working area (1500 x 1500 mm) the E-FORM XL1-250 pushes electric technology to reach up to 250 tonnes of force. All the advantages of an electric press with high tonnages for mass production or large parts.
