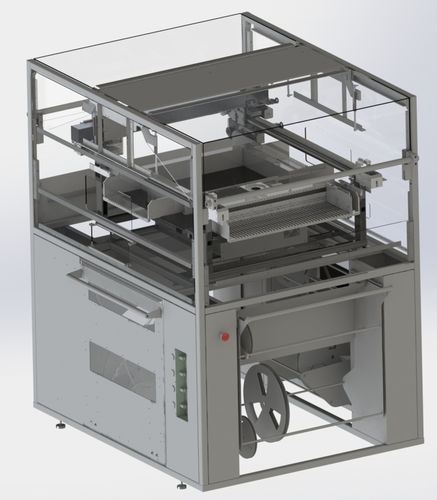

SMT pick-and-place machine P40

automatic

TECHNICAL DATA max. PCB max. 660x480mm Component range from 0201 to 40x80mm min pitch 0,4mm components packgage tapes / sticks / trays Components centering non-contact alignment Placement rate 1 - p&p head - up to 1800 cph. 2 - p&p heads - up to 2800 cph. 4 - p%p heads - up to 4800 cph. Feeder capacity up to 120 x 8mm - automatic smart feeder Resolution X / Y - axis - 0,008mm ( linear encoder ) Z - axis : 0,02mm ( linear encoder ) Rotation : 0,01° ( rotation encoder ) Placement accuracy +/- 0,03mm Dimension and weight 1100 x 1300 x 1400 mm / ca. 165 kg Supply 110-230V / 50-60Hz / 1350W / 0,6 MPa / min. 30 l/min KEY FEATURES Precision full vision SMT pick and place machine up to 4 automatic pick & place heads stand alone or with integrated conveyor - adjustable width automatic nozzle changer ( 12 tools ) top camerasystem for automatic fiducial bottom camera - optical alignment system for SMD components Gerber - and CAD editor (all CAD-systems ) for creating of p&p programms smart feeder system - CAN Bus incl. SMEMA interface operating system: Windows 7/8 control panel: PC keybord / Mouse remote service via internet Application area suitable for small and medium volume production
