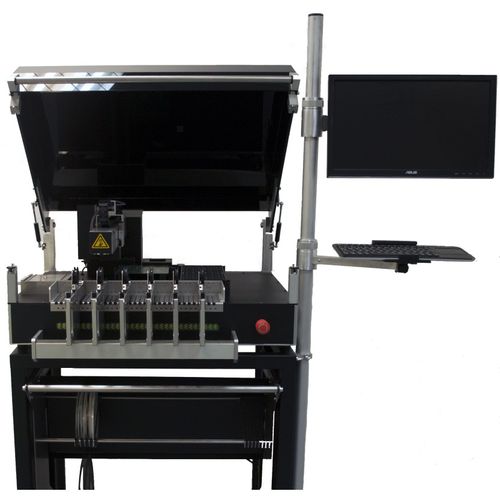

SMT pick-and-place machine P20
automaticwith optical alignment system

SMT pick-and-place machine
SMT pick-and-place machine
SMT pick-and-place machine
SMT pick-and-place machine
SMT pick-and-place machine
Add to favorites
Compare this product


Characteristics

Applications
SMT
Other characteristics
automatic, with optical alignment system

Description

TECHNICAL DATA working area max. 540x480mm Component range from 0201 to 40x80mm min pitch 0,4mm components packgage tapes / sticks / trays / bulk Components centering optical alignment sytem Placement rate up to 1600 cph. Feeder capacity max 33x8mm - automatic tape feeder + 40x8mm strips feeder and 2 x (300 x 200mm) - IC-tray with 200 x 300mm PCB size Resolution X / Y - axis - 0,008mm ( linear encoder ) Z - axis : 0,02mm ( linear encoder ) Rotation : 0,01° ( rotation encoder ) Placement accuracy +/- 0,03mm Dimensions and weight 840 x 630 x 430 mm / ca. 95 kg Supply 110-230V / 50-60Hz / 1250W / 0,6 MPa / 20l/min KEY FEATURES Precision automatic SMT pick & place machine with vision system automatic pick & place head automatic nozzle changer ( 6 tools ) top camerasystem for automatic fiducial bottom camera - optical alignment system for SMD components Gerber - and CAD editor teach-in mode - electronic manipulator intelligent feeder system - CAN Bus vision inspektion of printing accuracy of solder paste and accuracy of component placement operating system: Windows 7 remote service via internet Graphical user interface Application area suitable for small and medium volume production qualified for pick & place of all types of components
