SMT pick-and-place machine / automatic / with optical alignment system
P1

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

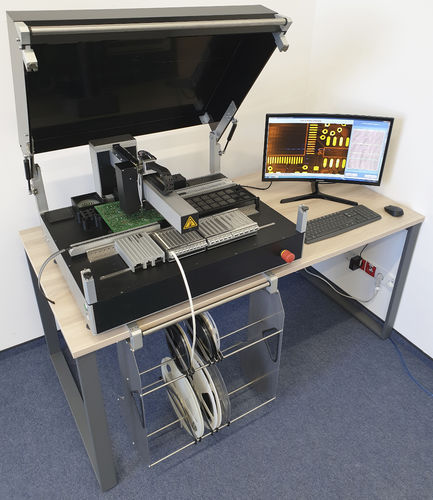

SMT pick-and-place machine SMT pick-and-place machine - P1
{{requestButtons}}

Characteristics

  • Applications:

    for SMT

  • Other characteristics:

    automatic, with optical alignment system

Description

TECHNICAL DATA

Working area
max. 540x480mm

Component range
from 0201 to 40x80mm
min pitch 0,4mm

components packgage
tapes / sticks / trays / bulk

Components centering
non-contact alignment

Placement rate
up to 1200 cph.

Feeder capacity
up to 80 x 8mm - tape strips or reels
and 2 x (300 x 200mm) - IC-tray
with 200 x 300mm PCB size

Resolution
X / Y - axis - 0,008mm ( linear encoder )
Z - axis : 0,02mm ( linear encoder )
Rotation : 0,01° ( rotation encoder )

Placement accuracy
+/- 0,03mm

Dimensions and weight
840 x 630 x 430 mm / ca. 90 kg

Supply
110-230V / 50-60Hz / 850W / 0,6 MPa / 20l/min

KEY FEATURES

Precision automatic SMT pick & place machine with vision system
automatic pick & place head
automatic nozzle changer ( 6 tools )
top camerasystem for automatic fiducial
bottom camera - optical alignment system for SMD components
Gerber - and CAD editor ( all CAD-systems)
teach-in mode - electronic manipulator
vision inspektion of printing accuracy of solder paste and accuracy of component placement
remote service via internet
control panel: PC keybord / Mouse
Graphical user interface

Application area
suitable for small and medium volume production
qualified for pick & place of all types of components
