signal amplifier / analog / isolated / transducer
IMA2R

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
signal amplifier signal amplifier - IMA2R
{{requestButtons}}

Characteristics

  • Type:

    signal

  • Other characteristics:

    analog, isolated, transducer, DIN rail

  • Voltage:

    Min.: 0 V

    Max.: 10 V

  • Current:

    Min.: 0 mA

    Max.: 20 mA

Description

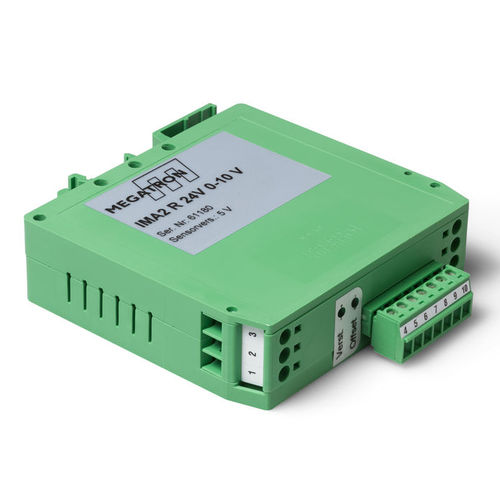

IMA2-R amplifiers are complete signal processing units for potentiometric transducers and convert potentiometric output signals to standardized signals. The connected sensor is powered with 5 V by default (supply voltages between 0 and 10 V could be realised on request) Most of commonly used output signals (0..5 V, 0..10 V, ±5 V, ±10 V, 0..20 mA, 4..20 mA) are available. The amplifier housing (Phoenix / UEGM) is designed for mounting rails.

For direct connection of potentiometer (linear and rotary)
Internal galvanic isolation of supply
Availibility of most common output signals
For mounting at DIN EN-mounting rail
