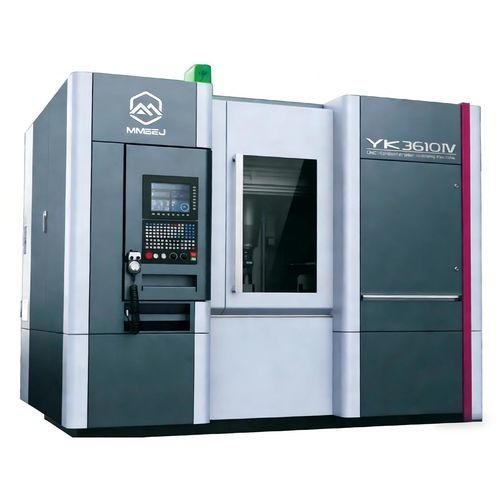

CNC gear-hobbing machine YK3610 series

horizontal

Overview
The horizontal gear hobbing machines are engineered for shaft-mounted gear production, using a horizontal clamping configuration optimized for shaft workpieces. The product range covers basic mechanical machines through to high-end CNC solutions, allowing selection according to production volume and precision requirements.

Applications and scope

• Suitable for shaft gears and similar cylindrical gear components
• Machining module range: 0.1 to 6
• Workpiece diameter range: 10 mm to 100 mm
• Customizable systems and control axes to match production needs
• Fixtures and a variety of hobs available per part specification

Features

• Horizontal clamping design optimized for shaft gear machining
• Complete product matrix from basic machines to high-end CNC equipment
• Configurable control systems and optional numbers of control axes
• Support for custom fixtures and multiple hob types based on part requirements

Technical data

• Models: YK3610III and YK3610IV (YK3610 series)
• Maximum working diameter: φ100 mm
• Maximum working module: 3 mm
• Workpiece spindle speed: 1000 r/min (YK3610III), 600 r/min (YK3610IV)
• Hob spindle speed: 6000 r/min (YK3610III), 4000 r/min (YK3610IV)
• Hob shifting length: 100 mm
• Z-slide travel: 280 mm
• Hob head swing angle: ±45°
• Minimum tooth number: 3 pieces
• Maximum hob diameter × length: φ80 × 110 mm
• Total power: 25 kVA (YK3610III), 30 kVA (YK3610IV)
• Overall dimensions (L×W×H): 3490×3370×2380 mm (YK3610III); 3530×3480×2550 mm (YK3610IV)
• Approximate machine weight: ≈6 t
