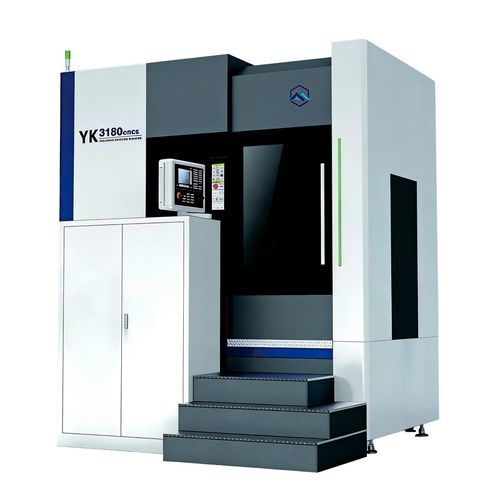

CNC gear-hobbing machine YK series

verticalfor large-diameter parts

Overview

• Vertical gear hobbing machines are CNC gear machining equipment that uses hobs to process gears using the generating method. With a vertical layout as its core structure, it combines high rigidity, high precision, and high efficiency. It is mainly used for the batch and precision machining of various cylindrical gears and worm gears, and is a core piece of equipment in the gear manufacturing industry.

Key Features

• Stable Structure: Adopting a vertical column + worktable layout, providing high rigidity and low vibration, suitable for machining large-diameter and large-module gears.
• High Machining Accuracy: Capable of machining spur gears, helical gears, worm gears, and synchronous gears with stable tooth profile and direction accuracy suitable for mid-to-high-end gears.
• Suitable for Large Workpieces: Worktable with high load-bearing capacity for large-diameter, disc, and hub gears; offers stable clamping and convenient loading/unloading.
• High Degree of Automation: Equipped with CNC system to perform gear indexing, automatic feeding, and multi-axis linkage for high machining efficiency and good consistency.
• Wide Application Range: Can machine a wide range of modules; used in gear manufacturing for reducers, construction machinery, wind power, machine tools, etc.

Technical Data Table
Item | UNIT | YK3132-3 | YKG3136CNC | Yk3140 | YK3150-6 | YK3180CNC6
Number of controlled axes | | 3 | 6 | 3 | 6 | 6
Maximum workpiece diameter | mm | φ320 | φ360 | φ400 | φ500 | φ800
Maximum workpiece module | mm | 8 | 10 | 10 | 12 | 18
Maximum processing width | mm | 250 | 450 | 400 | 450 | 600
Maximum diameter length of hob | mm | φ160/200 | Φ170/210 | Φ170/220 | φ200/240 | φ230/260
Maximum axial movement of tool spindle | mm | 130 | 190 | 190 | 200 | 220
Distance between hob center and table center | mm | 30~280 | 40~310 | 40~320 | 35~385 | 60~560
Distance from hob center to table surface | mm | 260~560 | 180~680 | 163~613 | 190~690 | 380~1030
Distance from outer bracket end face to table surface | mm | 400~750 | 370~920 | 490~1045 | 380~930 | 500~1200
Diameter of table surface | mm | φ370 | φ360 | φ420 | φ520 | φ750
Aperture of table | mm | φ80 | φ75 | φ120 | φ140 | φ200
Turret rotation angle (A axis) | deg | ±45° | ±45° | ±45° | ±45° | ±45°
Hob spindle speed (B axis) | rpm | 79-420 | 60~600 | 40~375 | 30-600 | 60~600
Maximum table speed (C axis) | rpm | 24 | 100 | 30 | 20 | 15
Radial feed speed (X axis) | m/min | 0~1000 | 1~2000 | 2~1000 | 2~1000 | 1~2000
Tangential feed speed (Y axis) | m/min | 0~1000 | 1~2000 | 1000 | 3000 | 1-2000
Axial feed speed (Z axis) | m/min | 0~1000 | 1~1000 | 0~1000 | 0~1000 | 0~1000
Main motor | kW | 7.5 | 15 | 11 | 17 | 28
Weight | kg | 6250 | 14000 | 13500 | 17000 | 23000

Caractéristiques / spécifications techniques

• YK3132-3: Controlled axes 3; Max workpiece diameter φ320 mm; Max module 8 mm; Max processing width 250 mm; Hob diameter φ160/200 mm; Tool spindle axial movement 130 mm; Hob center-table center distance 30~280 mm; Hob center to table surface 260~560 mm; Outer bracket end face to table surface 400~750 mm; Table surface diameter φ370 mm; Table aperture φ80 mm; A axis ±45°; B axis speed 79-420 rpm; C axis max speed 24 rpm; Feed speeds X 0~1000 m/min, Y 0~1000 m/min, Z 0~1000 m/min; Main motor 7.5 kW; Weight 6250 kg.
• YKG3136CNC: Controlled axes 6; Max workpiece diameter φ360 mm; Max module 10 mm; Max processing width 450 mm; Hob diameter Φ170/210 mm; Tool spindle axial movement 190 mm; Hob center-table center distance 40~310 mm; Hob center to table surface 180~680 mm; Outer bracket end face to table surface 370~920 mm; Table surface diameter φ360 mm; Table aperture φ75 mm; A axis ±45°; B axis speed 60~600 rpm; C axis max speed 100 rpm; Feed speeds X 1~2000 m/min, Y 1~2000 m/min, Z 1~1000 m/min; Main motor 15 kW; Weight 14000 kg.
• Yk3140: Controlled axes 3; Max workpiece diameter φ400 mm; Max module 10 mm; Max processing width 400 mm; Hob diameter Φ170/220 mm; Tool spindle axial movement 190 mm; Hob center-table center distance 40~320 mm; Hob center to table surface 163~613 mm; Outer bracket end face to table surface 490~1045 mm; Table surface diameter φ420 mm; Table aperture φ120 mm; A axis ±45°; B axis speed 40~375 rpm; C axis max speed 30 rpm; Feed speeds X 2~1000 m/min, Y 1000 m/min, Z 0~1000 m/min; Main motor 11 kW; Weight 13500 kg.
• YK3150-6: Controlled axes 6; Max workpiece diameter φ500 mm; Max module 12 mm; Max processing width 450 mm; Hob diameter φ200/240 mm; Tool spindle axial movement 200 mm; Hob center-table center distance 35~385 mm; Hob center to table surface 190~690 mm; Outer bracket end face to table surface 380~930 mm; Table surface diameter φ520 mm; Table aperture φ140 mm; A axis ±45°; B axis speed 30-600 rpm; C axis max speed 20 rpm; Feed speeds X 2~1000 m/min, Y 3000 m/min, Z 0~1000 m/min; Main motor 17 kW; Weight 17000 kg.
• YK3180CNC6: Controlled axes 6; Max workpiece diameter φ800 mm; Max module 18 mm; Max processing width 600 mm; Hob diameter φ230/260 mm; Tool spindle axial movement 220 mm; Hob center-table center distance 60~560 mm; Hob center to table surface 380~1030 mm; Outer bracket end face to table surface 500~1200 mm; Table surface diameter φ750 mm; Table aperture φ200 mm; A axis ±45°; B axis speed 60~600 rpm; C axis max speed 15 rpm; Feed speeds X 1~2000 m/min, Y 1-2000 m/min, Z 0~1000 m/min; Main motor 28 kW; Weight 23000 kg.
