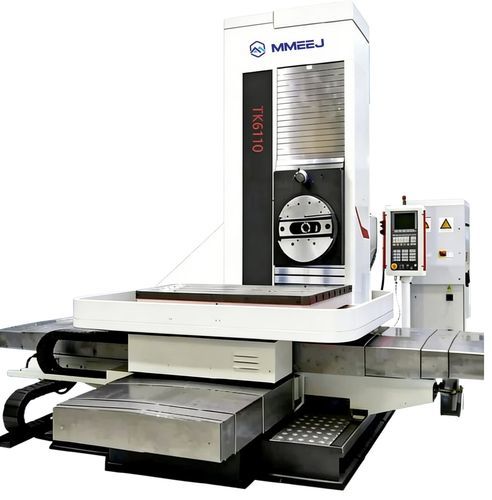

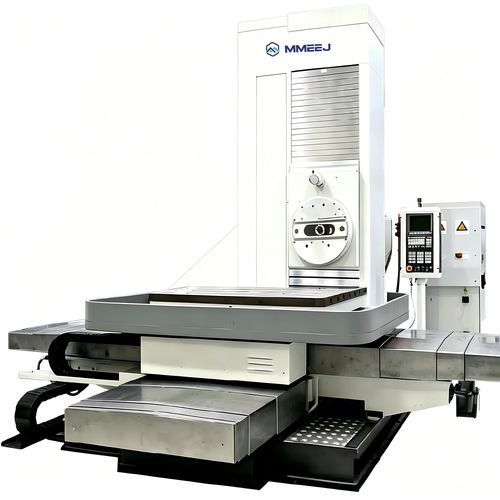

CNC boring machine TK 61 series

horizontaltable type4-axis

Description
Fully CNC-controlled boring machine series TK 61 (models TK6110 A/B and TK6130 A/B). Main drive uses an AC variable-speed motor with stepless speed regulation across high and low ranges, spindle orientation and braking. Each major feed axis is driven by an independent AC servo motor coupled to ball-screw transmission. Major structural components follow high-end CNC machine-tool architecture to allow future functional expansion.

Models

• Model A — With Fixed Facing Head
• Model B — Without Fixed Facing Head

Target industries

• Model A (With Fixed Facing Head): High-voltage switchgear; pumps and valves; petroleum machinery; chemical machinery.
• Model B (Without Fixed Facing Head): Construction machinery; automotive components; aerospace; molds and dies; electric motors.

Tabular specifications (per model)
Unit | TK6110 A | TK6110 B | TK6130 A | TK6130 B
Boring spindle diameter (mm) | 110 | 110 | 130 | 130
Spindle Taper | BT50/P50T-I | BT50/P50T-I | BT50/P50T-I | BT50/P50T-I
Spindle Speed (r/min) | 10-1500 | 10-1500 | 10-1500 | 10-1500
Facing Head Diameter (mm) | 670 | - | 800 | -
Facing Head Speed (r/min) | 7-165 | - | 5-125 | -
Table Dimensions (W × L) (mm) | 1250x1400 | 1250x1400 | 1400x1600 | 1400x1600
Table Load Capacity (kg) | 5000 | 5000 | 8000 | 8000
Table Cross Travel X (mm) | 1800 | 1800 | 2200 | 2200
Spindle Vertical Travel Y (mm) | 1600 | 1600 | 2000 | 2000
Table Longitudinal Travel Z (mm) | 1400 | 1400 | 2000 | 2000
Spindle Axial Travel W (mm) | 600 | 500 | 800 | 600
Facing Head Slide Travel U (mm) | 200 | - | 300 | -
Feed Range X,Y,Z (mm/min) | 2.5-5000 | 2.5-5000 | 2.5-10000 | 2.5-10000
Feed Range W (mm/min) | 2.5-3000 | 2.5-3000 | 2.5-3000 | 2.5-3000
Feed Range U (mm/min) | 1-500 | - | 1-500 | -
B (r/min) | 0.003-1 | 0.003-1 | 0.003-1 | 0.003-1
Positioning Accuracy X,Y,Z (mm) | 0.018 | 0.018 | 0.02 | 0.02
Positioning Accuracy W (mm) | 0.025 | 0.025 | 0.025 | 0.025
Positioning Accuracy U (mm) | 0.025 | - | 0.025 | -
B (·) | 8 | 8 | 8 | 8

Features / Technical specifications

• Boring spindle diameter (mm): TK6110 A = 110; TK6110 B = 110; TK6130 A = 130; TK6130 B = 130.
• Spindle taper: BT50/P50T-I for all models.
• Spindle speed (r/min): 10-1500 for all models.
• Facing Head Diameter (mm): TK6110 A = 670; TK6110 B = -; TK6130 A = 800; TK6130 B = -.
• Facing Head Speed (r/min): TK6110 A = 7-165; TK6110 B = -; TK6130 A = 5-125; TK6130 B = -.
• Table dimensions (W × L) (mm): TK6110 A = 1250x1400; TK6110 B = 1250x1400; TK6130 A = 1400x1600; TK6130 B = 1400x1600.
• Table load capacity (kg): TK6110 A/B = 5000; TK6130 A/B = 8000.
• Table cross travel X (mm): TK6110 A/B = 1800; TK6130 A/B = 2200.
• Spindle vertical travel Y (mm): TK6110 A/B = 1600; TK6130 A/B = 2000.
• Table longitudinal travel Z (mm): TK6110 A/B = 1400; TK6130 A/B = 2000.
• Spindle axial travel W (mm): TK6110 A = 600; TK6110 B = 500; TK6130 A = 800; TK6130 B = 600.
• Facing Head slide travel U (mm): TK6110 A = 200; TK6110 B = -; TK6130 A = 300; TK6130 B = -.
• Feed ranges X/Y/Z (mm/min): TK6110 A/B = 2.5-5000; TK6130 A/B = 2.5-10000.
• Feed range W (mm/min): all models = 2.5-3000.
• Feed range U (mm/min): TK6110 A = 1-500; TK6110 B = -; TK6130 A = 1-500; TK6130 B = -.
• B (r/min): 0.003-1 for all models.
• Positioning accuracy X/Y/Z (mm): TK6110 A/B = 0.018; TK6130 A/B = 0.02.
• Positioning accuracy W (mm): 0.025 for all models.
• Positioning accuracy U (mm): TK6110 A = 0.025; TK6110 B = -; TK6130 A = 0.025; TK6130 B = -.
• Additional technical notes: Machine uses AC variable-speed main drive, independent AC servo motors with ball screw transmission on major axes, FAGOR linear encoders (Spain) for closed-loop control, and a mainstream imported CNC controller supporting advanced functions including 4-axis simultaneous interpolation.
