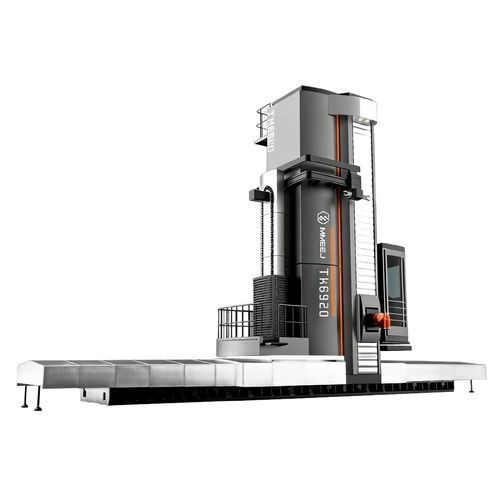

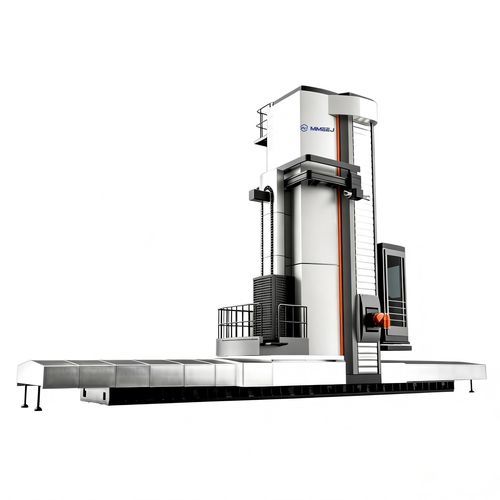

CNC boring mill TK69 series

horizontalfloorrotating table

Short description

• Series 69 CNC floor-type boring mills (TK69 series) designed for heavy workpieces and integrated milling/boring operations.
• Guide options: roller-sliding hybrid; high-speed imported roller linear guides; closed hydrostatic guide structure with multi-pump system (structural variants available).
• CNC rotary table: load capacity 20 t–200 t; table sizes from 2 m × 2 m to 5 m × 10 m; supports arbitrary indexing and simultaneous multi-axis linking.
• Available tool magazine capacities and spindle diameters to match machining needs (model-dependent).

Technical Data
Technical Data:
Item | UNIT | TK6913-HA | TH6913-HA | TK6916-HA | TH6916-HA | TK6920-HQ | TH6920-HQ | TK6920-HA | TH6920-HA
Tool magazine capacity (Choose as needed) | PCS | / | 40-120 | / | 40-120 | / | 40-120 | / | 40-120
Boring spindle diameter | mm | 130 | 130 | 160 | 160 | 200 | 200 | 200 | 200
Main motor power | kW | 22/30 | 22/30 | 71 | 71 | 100 | 100 | 100 | 100
Milling spindle head size | mm | 220 | 220 | 280 | 280 | 340 | 340 | 340 | 340
Boring spindle taper hole | | 7:24 ISO | 7:24 ISO | 50 | 50 | 60 | 60 | 60 | 60
Ram cross-section size | mm | 480×480 | 480×480 | 480×480 | 480×480 | 480×480 | 480×480 | 530×530 | 530×530
Ram rapid movement speed (W) | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 8000 | 8000
Boring spindle rapid traverse speed (Z) | mm/min | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 8000 | 8000
Column rapid movement speed (X) | mm/min | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 12000 | 12000
Spindle box rapid movement speed (Y) | mm/min | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | 12000 | 12000
Spindle torque | N·m | 11500 | 11500 | 11500 | 11500 | 11500 | 11500 | 12500 | 12500
Spindle revolutions | r/min | 1.6-1200/2000 | 1.6-1200/2000 | 1.6-1200/2000 | 1.6-1200/2000 | 1.6-1200/2000 | 1.6-1200/2000 | 1.6-1200/2000 | 1.6-1200/2000
Ram stroke (Z) | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200
Boring spindle stroke (W) | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200
Column travel (X) | mm | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m) | 8000 (can be lengthened in multiples of 1 m)
Spindle box stroke (Y) | mm | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m) | 4000 (can be increased in multiples of 0.5 m)
Ram feed (W) | mm/min | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000
Boring axis feed (Z) | mm/min | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000 | 0.1~4000
Column feed (X) | mm/min | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000
Spindle box feed (Y) | mm/min | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000 | 0.1~6000
Siemens CNC system | | Siemens CNC system | Siemens CNC system | Siemens CNC system | Siemens CNC system | Siemens CNC system | Siemens CNC system | Siemens CNC system | Siemens CNC system

Features / technical specifications

• Series: TK69 Series (Series 69 CNC floor-type boring mills).
• Guide types: Roller-sliding hybrid; high-speed imported roller linear guides; closed hydrostatic guide structure with multi-pump system (structural variants available).
• CNC control: Siemens CNC system.
• Rotary table: load capacity 20 t – 200 t; table dimensions from 2 m × 2 m to 5 m × 10 m; supports arbitrary indexing and simultaneous multi-axis linkage.
• Tool magazine capacity: selectable, typical range 40–120 pieces (model-dependent; some columns show '/' where not applicable).
• Boring spindle diameters by model: TK6913/TH6913 ≈ 130 mm; TK6916/TH6916 ≈ 160 mm; TK6920 variants ≈ 200 mm.
• Main motor power (examples): 22/30 kW (some models), up to 71 kW and 100 kW for larger variants.
• Milling spindle head size (examples): 220 mm, 280 mm, 340 mm depending on model.
• Spindle taper: 7:24 ISO (typical) and other specified tapers per model.
• Ram cross-section sizes: typically 480×480 mm; larger variants 530×530 mm.
• Travel and stroke ranges: Ram stroke (Z) 1200 mm; boring spindle stroke (W) 1200 mm; column travel (X) standard 8000 mm (can be lengthened in 1 m increments); spindle box stroke (Y) 4000 mm (can be increased in 0.5 m increments).
• Rapid traverse speeds: ram/Z spindle up to 10000 mm/min (some variants 8000 mm/min); column/spindle box up to 15000 mm/min (some variants 12000 mm/min).
• Feed ranges: ram and boring axis 0.1–4000 mm/min; column and spindle box feed 0.1–6000 mm/min.
• Spindle performance: torque up to ~12500 N·m (model-dependent); spindle speeds range 1.6–1200/2000 r/min (model-dependent).
