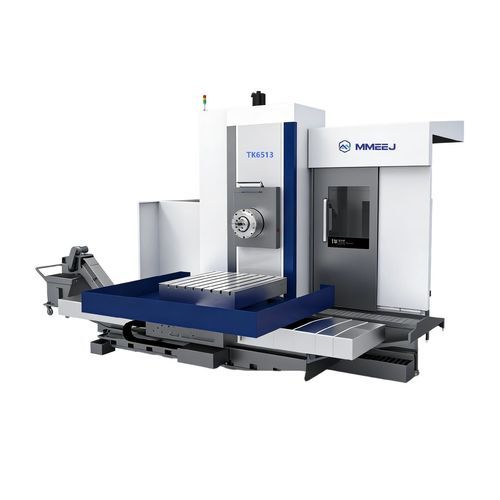

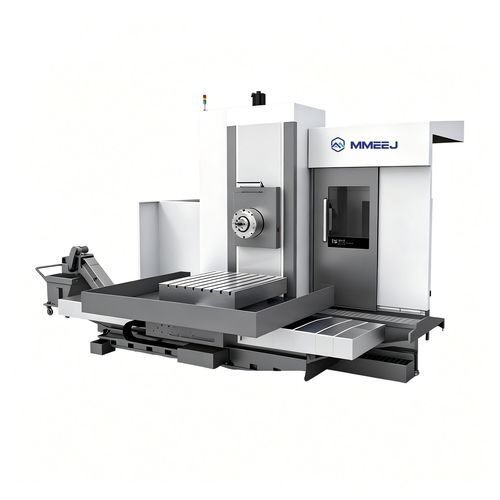

CNC boring machine TK65 series

horizontalcolumn typetable type

Overview
The machine features a T-shape bed with a single column and a laterally suspended headstock. The workbench and slide carriage move on the transverse bed guiderail (X axis); the column is fixed to the slide carriage and moves on the longitudinal bed guiderail (Z axis); the headstock moves on the vertical column guiderail (Y axis). The CNC workbench provides 360° rotation (B axis) and the spindle/boring shaft operates in a milling shaft (W axis). X, Y and Z guideways are integral steel quenched and finished to approximately HRC60. Frontal guideways use PTFE sheet pairing and lateral guideways use roller guides to ensure low friction and stable accuracy. The workbench circular guide is a cast-iron/PTFE pair; imported thrust bearings relieve axial load. A double-worm mechanism eliminates backlash for stable motion and high positioning accuracy. Designed for heavy-duty boring, milling and machining of large workpieces.

Technical parameters (select models)

• Series and models: TK(H)65 Series — examples: TK(H)6511B, TK(H)P6511B, TK(H)6513, TK(H)P6513, TK(H)6516, TK(H)P6516
• Workbench sizes (mm): examples include 1000×1250, 1250×1400, 1400×1600, 1600×1800, 2000×2000, 2000×2500, 2500×3000
• Maximum allowable load: 5–30 T depending on model (examples: 5 T; 10 T; up to 30 T)
• Spindle diameter: φ110–φ160 mm (model dependent)
• Facing head diameter (where applicable): up to φ900 mm
• Spindle speed: 10–2500 rpm (depending on model)
• Tool taper: JT50 / BT50
• Main motor power: examples up to 41/49.2 kW
• Maximum spindle torque: up to 3300/4000 Nm on larger models
• Axis strokes (examples): X up to 4000 mm; Y up to 3000 mm; Z up to 2000 mm; W up to 1000 mm; U where present up to 330 mm
• Feed speed and rapid traverse: feed ranges and rapid traverse vary by model (typical rapid traverse X/Y/Z 10 m/min; W rapid up to 24 m/min on some models)
• Positioning accuracy (standard JB/T4373.1-2019): X/Y/Z typical 0.015–0.028 mm; repeatability X/Y/Z 0.01–0.013 mm; repeatability W 0.014–0.016 mm
• CNC control: SIEMENS 828D

Key features / Technical specifications

• Layout: T-shape bed, single column, lateral suspension headstock
• Workbench: 360° rotation (B coordinate)
• Spindle/boring shaft: movable within a milling shaft (W axis)
• Guideways: integral steel guiderails on X, Y, Z hardened to approx. HRC60
• Low-friction pairing: frontal PTFE sheet pairing and lateral roller guides for stable accuracy
• Workbench circular guide: cast-iron / PTFE guiderail pair with imported thrust bearing
• Backlash elimination: double-worm mechanism
• Tool taper: JT50 / BT50
• CNC control: SIEMENS 828D
• Multiple model variants in TK65 Series with differing workbench sizes, loads, motors and strokes to suit large-part machining
