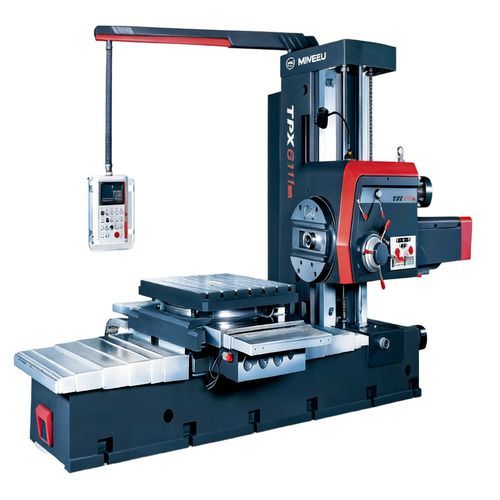

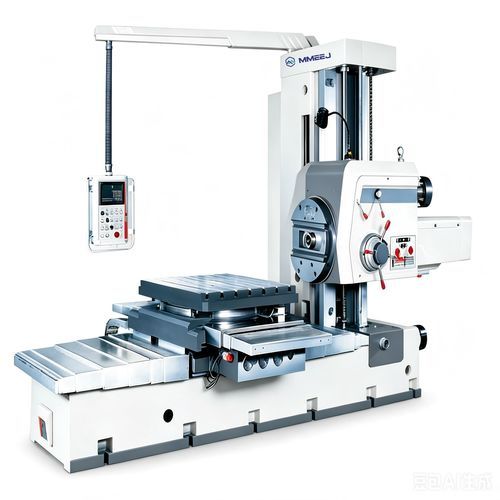

CNC boring milling machine TPX Series

horizontalfloortable type

Overview
The TPX Series horizontal milling and boring machines are designed for rough and finish boring, and for milling large or box-type components. They are suitable for heavy-duty and precision work on internal bores, cylindrical turning and grooving.

Design & precision
The machines feature a 4×90° optical positioning device for accurate indexing of large workpieces and a precision digital readout (DRO) for coordinate and position control. Typical linear reading accuracy is 0.005 mm (X/Y/Z); B‑axis reading accuracy 0.001 mm on applicable models.

Technical specifications (summary)

• Series name: TPX Series (models include TPX6111B, TPX6111B/2, TPX6111B/3, TPX6113, TPX6113/2, T(P)X6211, T(P)X6213, T(P)X6511×2, T(P)X6513×2).
• Spindle diameter: typically 110 mm or 130 mm. Spindle taper: Morse No.6 or Metric 80 (ISO 7:24 No50) depending on model.
• Spindle torque: typical 1225 N·m up to 3136 N·m on larger models; max axial thrust up to 31,360 N.
• Spindle speed ranges: 8–1000 r/min or 4–800 r/min; speed settings vary by model (typically 18–24 steps).
• Main spindle motor power: commonly 7.5 kW (smaller models) or 15 kW (larger models).
• Facing plate: diameters 600–750 mm; facing-plate torque up to 4,900 N·m; speed ranges 4–200 r/min or 2.5–125 r/min.
• Worktable: sizes vary (e.g., 1100×960 mm to 1800×1600 mm); max load from 5,000 kg up to 10,000 kg on larger variants; T‑slot sizes and counts vary by model.
• Travels (examples): X up to 2,000 mm (extendable on request); Y up to 1,800 mm; Z up to 2,000 mm on larger models; W/U axis and multi‑axis configurations available.
• Feed & speed: rapid traverse commonly X/Y/Z/W = 2,500 mm/min; feed per spindle revolution ranges approx. 0.01–8 mm/rev depending on axis and model.
• Typical linear measurement reading accuracy: 0.005 mm (X/Y/Z); B‑axis 0.001 mm where equipped.

Applications
Typical applications include internal bore machining, cylindrical turning, facing, grooving and heavy component machining for industries requiring large workpiece handling (e.g., housings, gearboxes, large shafts, box components). The machines handle heavy loads and large diameters while providing indexing accuracy for multi‑face machining.

Options & customization

• Worktable dimensions and T‑slot configurations customizable on request.
• Extended X/Y/Z travels, dual configurations (W1/W2, U1/U2), and special spindle/taper options available per model.
• Control and measurement options: DRO configurations, optical indexing, and other factory options to match production requirements.

Ordering information
Provide required workpiece dimensions, material, maximum weight, required spindle taper and accuracy requirements when requesting a quotation. Contact the supplier to discuss model variants and configuration options suited to your machining scope.
