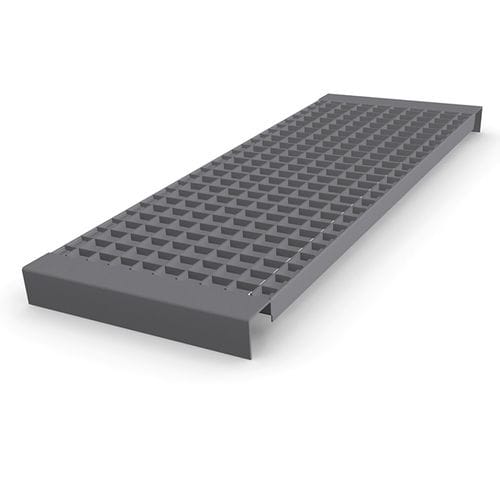

Metal grating

weldedfor shelving

Product information
In this version, a rolled U-shaped section is welded to the ends of the bearing bars. The grating is inlaid within the shelf and additionally locked to the cross-members by the U-shaped section. This arrangement provides additional safety when shelves are subjected to excessive loads.

Accessories / Fixing clips

• Hook fastener: upper clip or disc, hook made of bent round steel with welded sleeve nut, hexagon screw M8.
• Hilti clamp: consisting of an upper saddle clip and a lower part connected together; high resistance to vibration, handled by one person, significantly shorter installation times.
• Clamp B: consisting of an upper saddle clip, lower clamp part, M8x60 hexagon screws and M8 square nut.

Characteristics / technical specifications

• Product type: Inlaid shelf grating with rolled U-shaped section surround
• Design: rolled U-shaped section welded to the ends of the bearing bars
• Installation: grating lies within the shelves and is locked to cross-members by the U-shaped section
• Benefit: provides additional safety when shelves are overloaded
• Available accessories: Hook fastener; Hilti clamp; Clamp B
