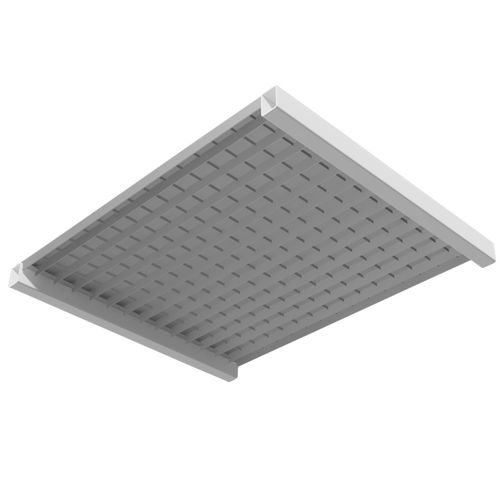

Sheet metal grating
galvanized steelindustrial

sheet metal grating
sheet metal grating
sheet metal grating
Add to favorites
Compare this product


sheet metal, galvanized steel
Product applications


MEISER has always been at the torefront for reliability and progress. In our most recently developed product, the U-Channel grating, these two characteristics were impressively combined. MEISER has developed a grating which is capable of bearing up to 200* times its own weight. This shelf grating was specifically developed for handling cardboard boxes. This patented design makes it possible to move these boxes on the deburred U-Channels without damaging them. Grating Dimensions The length of the grating also discribes the length of the u-profile and corrosponds to the (free) span of the shelf system. The U-channel shelf gratings are available in dimensions from 700 mm up to 1700 mm. The width of the grating corrosponds to the scheduled width of the shelf system, or portion thereof. This dimension indicates the pieces of U-profiles, which depends to the responsable partition of the bars. The most shelf systems will be manufactured in two or three parts. Shelf gratigns are available with a width from 100 mm up to 1600 mm. However, the number of U-profiles is limeted to 10 profiles per grating Shelf Grating inlaid with heat sink sheet metal - Grating Version This grating was specifically developed for the fire protection requirements required by law. A 0.8 mm thick and pregalvanized smooth sheet metal is applied to the U-channels or, in the case of gratings, on the Z-profiles and thus functions as a heat sink.


No catalogs are available for this product.

See all of Meiser‘s catalogs
