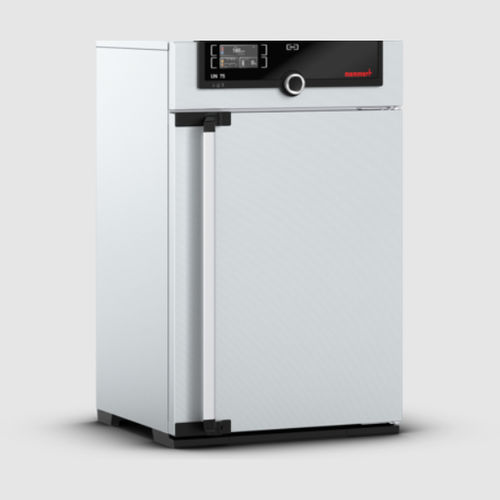

Drying oven UN75
curingagingthermal

drying oven
drying oven
drying oven
Add to favorites
Compare this product


Characteristics

Function
drying, curing, aging, thermal, hardening, quenching
Configuration
chamber
Heat source
electric
Other characteristics
stainless steel, programmable, laboratory, industrial
Capacity

74 l (19.5 gal)

Maximum temperature

Max.: 300 °C (572 °F)

Min.: 20 °C (68 °F)

Depth

330 mm (12.99 in)

Width

400 mm (15.75 in)

Height

560 mm (22.05 in)

Description

Universal oven UN75 Precise drying, heating, ageing, burn-in and hardening in research, science, industry and quality assurance. Standard delivery Universal oven The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. Control technology Language setting: German, English, Spanish, French, Polish, Czech, Hungarian ControlCOCKPIT: SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days Function SetpointWAIT: the process time does not start until the set temperature is reached Calibration: three freely selectable temperature values adjustable parameters: temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime Ventilation Convection: natural convection Fresh air: Admixture of pre-heated fresh air by electronically adjustable air flap Vent: vent connection with restrictor flap Communication Documentation: programme stored in case of power failure Programming: AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
