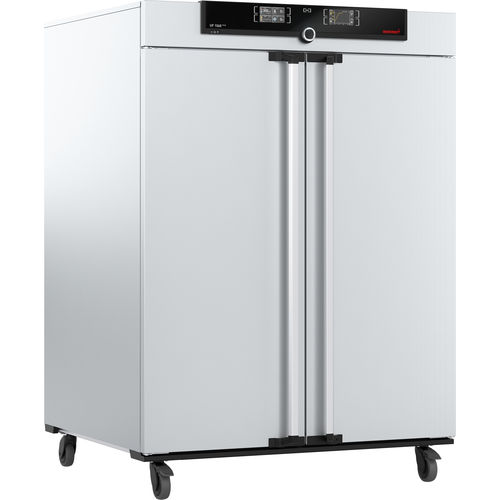

Quenching furnace UF1060plus
thermalhardeningaging

quenching furnace
quenching furnace
quenching furnace
Add to favorites
Compare this product


Characteristics

Function
quenching, thermal, hardening, aging, drying, curing
Configuration
chamber
Heat source
electric
Atmosphere
forced convection
Other characteristics
programmable, stainless steel, laboratory, industrial
Capacity

1,060 l (280 gal)

Maximum temperature

Max.: 300 °C (572 °F)

Min.: 20 °C (68 °F)

Depth

850 mm (33.46 in)

Width

1,040 mm (40.94 in)

Height

1,200 mm (47.24 in)

Description

Universal oven UF1060plus Precise drying, heating, ageing, burn-in and hardening in research, science, industry and quality assurance. Standard delivery Universal oven The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology. Control technology ControlCOCKPIT: TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. Language setting: German, English, Spanish, French, Polish, Czech, Hungarian Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 % Function SetpointWAIT: the process time does not start until the set temperature is reached Calibration: three freely selectable temperature values adjustable parameters: temperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime Ventilation Fan: forced air circulation by 2 quiet air turbines, adjustable in 10 % steps for each segment individually Fresh air: Admixture of pre-heated fresh air by electronically adjustable air flap Vent: vent connection with restrictor flap Communication Documentation: programme stored in case of power failure

Catalogs

No catalogs are available for this product.
