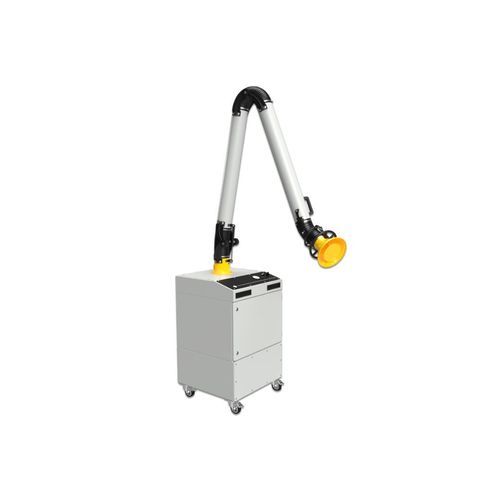

Mobile fume extractor Boxair VOC

laboratoryindustrialactivated carbon filter

Product overview
Boxair VOC is a mobile unit for local extraction and filtration of volatile organic compounds (VOCs) in workshops, laboratories and production areas. Compact and easily maneuverable, it is intended for source capture close to emission points.

Description
Mobile unit for local extraction and filtration of volatile organic compounds (VOCs). The system employs a two-stage filtration train — a panel pre-filter and a main molecular activated-carbon filter — to adsorb and neutralize odorous and harmful VOCs. Air is moved by a composite impeller driven by a 0.78 kW EC motor; filter inserts are designed for easy access and maintenance.

Applications

• Manufacturing and service — painting, printing and maintenance workshops
• Chemical and pharmaceutical industry — mixing, dosing and operations involving solvents
• Food processing — odor reduction during handling and product processing
• Cosmetic industry — aesthetic medicine clinics, beauty salons, dermatology offices
• Public buildings — hospitals, offices, airports and other sites requiring local air quality control

Construction

• Composite impeller with 0.78 kW EC motor
• Two filtration stages: panel pre-filter and main molecular (activated carbon) filter
• Easy access to filter inserts for fast replacement
• Pre-filter contamination indicator
• Intuitive airflow regulation
• Steel, welded, powder-coated housing
• Designed to cooperate with Oskar 120 self-supporting standing arms
• Full mobility on castors
• Anodized control panel with pressure gauge
• Compact form factor and footprint
• Dimensions: 650 x 730 x 1040 mm

Recommended arms OSKAR 120

• OC1220P – 101500
• OC1230P – 101504

Parameters

• Air flow unit: composite impeller with EC motor
• Maximum air flow: 800 m³/h
• Power supply: single-phase 200–277 V, 50/60 Hz
• Power: 0.78 kW
• Noise level: 70 dB(A)
• Drawing No: 106042-00

Technical specifications

• Model name: Boxair VOC
• Air flow unit: composite impeller with EC motor
• Maximum air flow: 800 m³/h
• Power supply: single-phase 200–277 V, 50/60 Hz
• Power: 0.78 kW
• Noise level: 70 dB(A)
• Filtration: two stages — panel pre-filter and main molecular (activated carbon) filter
• Pre-filter contamination indicator
• Easy access to filter inserts
• Intuitive air flow regulation
• Housing: steel, welded, powder-coated
• Anodized control panel with pressure gauge
• Compatibility: designed to cooperate with Oskar 120 standing arms (OC1220P, OC1230P)
• Mobility: mobile unit on castors
• Compact dimensions: 650 x 730 x 1040 mm
• Drawing number/reference: 106042-00
