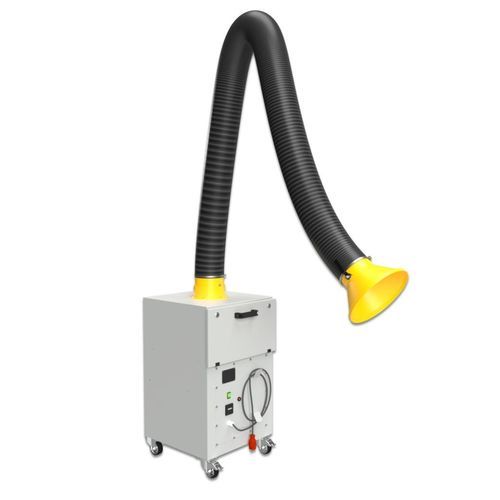

Mobile fume extractor BBW-M1-PCD

weldingcartridgewith extraction arm

Product description
The Boxair Basic mobile cassette filter is designed for extraction and filtration of welding smoke and dry dust in small workshops. It features a compact, welded steel powder-coated housing, three-stage filtration and an aluminum impeller driven by an induction motor. Intended for occasional to semi-professional use, the unit provides targeted local extraction where continuous industrial ventilation is not required.

Application

• occasional welding and repair operations without the need for continuous extraction
• small to medium volumes of dry airborne contaminants (non-corrosive, non-chemical)
• supplementary filtration for light carpentry and fabrication work
• maintaining air quality in small repair shops and service benches

Construction

• three filtration stages (cassette system)
• filter contamination indicator
• steel, welded, powder-coated housing
• hour counter for service tracking

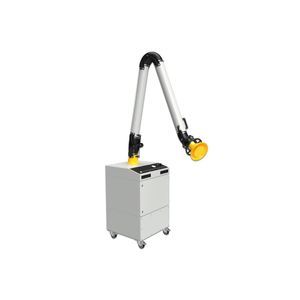

• compatible with Econ 160 extraction arm series

Recommended standing ECON arms 160 series

• E1620P – 101534
• E1630P – 101536

Boxair BASIC parameters
Model: BBW-M1-PCD
Air flow unit: aluminum impeller with induction motor
Maximum air flow: 950 m³/h
Power supply: 3~ 400V | 50Hz
Power: 0.75 kW
Noise level: 72 dB(A)
Drawing No: 101540-0-00

Technical specifications

• Model: BBW-M1-PCD
• Air flow unit: aluminum impeller with induction motor
• Maximum air flow: 950 m³/h
• Power supply: 3~ 400V | 50Hz
• Power: 0.75 kW
• Noise level: 72 dB(A)
• Housing: steel, welded, powder-coated
• Filtration: three stages (cassette)
• Features: filter contamination indicator, hour counter
• Compatible with: Econ 160 extraction arm series
