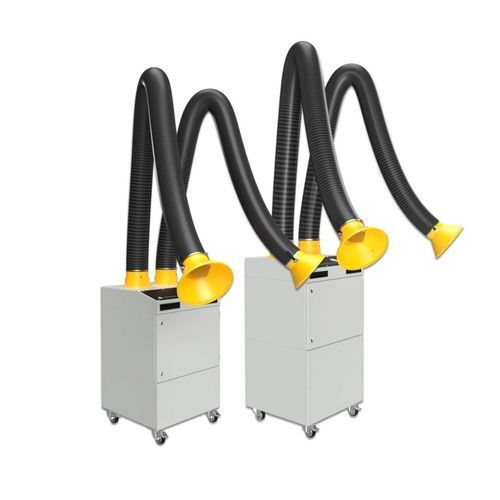

Mobile fume extractor BXWM5

weldingcartridgewith multiple extraction arms

Product overview
Boxair Welding Mobile is a mobile filtration unit for removal of dust and fumes produced mainly during welding. The unit captures contaminants at source using Econ or Oskar 160 series extraction arms. The BXWM5 filter set includes a metal pre-filter and a replaceable compact main cartridge. The updated Boxair BXWM line features an anodized aluminum control panel, a pressure gauge for filter monitoring and an IP66 push button for reliable operation.

Models tailored to your needs

• EC motor option: energy-efficient, precise speed control and low noise
• Induction motor option: robust solution providing high power and reliable operation

Application

• Intermittent welding operations where continuous extraction is not required
• Collection of small to moderate amounts of dry airborne pollutants (excluding corrosive or chemically aggressive substances)

Construction

• Anodized aluminum control panel with pressure gauge, IP66 button and industrial switches
• Metal pre-filter and high-efficiency replaceable compact main cartridge
• Two-stage filtration
• Easy access to filter cartridges and contamination indicator
• Welded steel housing with powder coating and rounded-door design
• Compatible with Econ 160 or Oskar 160 self-supporting extraction arms

Recommended standing ECON arms 160 series

• 2 x E1620P – 101534
• 2 x E1630P – 101536

Boxair BXWM5 parameters
Feature | Performance Classic Drive | Performance Smart Drive | Comfort Smart Drive
air flow unit | aluminum impeller with induction motor | aluminum impeller with EC motor | composite impeller with EC motor
air flow max | 1400 m³/h | 1400 m³/h | 1300 m³/h
power supply | 3~400V | 1~220-277V | 1~200-277V
power | 1,1 kW | 1,1 kW | 0,78 kW
noise level | 74 dB(A) | 74 dB(A) | 70 dB(A)
Drawing No | 105085-00 | 105085-00 | 105705-00

Technical specifications

• Product type: mobile cassette filtration unit for welding fumes, smoke and dry dust
• Filtration: metal pre-filter + replaceable compact main cartridge (two filtration levels)
• Compatible extraction arms: Econ 160 series or Oskar 160 series self-supporting arms
• Control and monitoring: anodized aluminum panel with pressure gauge, IP66 button and industrial switches
• Housing: welded steel, powder-coated, doors with rounded corners
• Access: easy access to filter cartridges; filter contamination indicator
• Drive options: EC motor or induction motor
• Airflow (max): up to 1400 m³/h (depending on drive)
• Power variants: 3~400V | 50Hz (classic); 1~220-277V | 50Hz (smart); 1~200-277V | 50Hz (comfort)
• Power consumption: 1,1 kW (Performance Classic/Smart) or 0,78 kW (Comfort Smart)
• Noise level: 74 dB(A) (Performance) or 70 dB(A) (Comfort)
• Relevant drawing numbers: 105085-00, 105705-00
• Recommended arm configurations: 2 x E1620P (101534), 2 x E1630P (101536)
