Mobile fume extractor Crawlair M

weldingindustrialgrinding

Overview

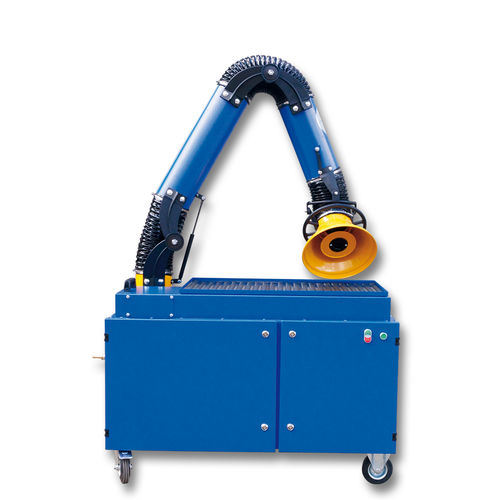

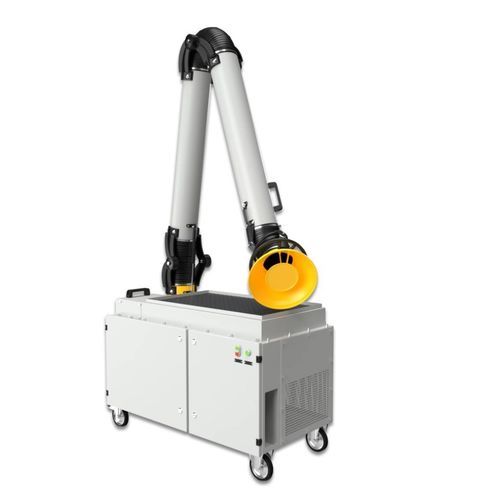

The Crawlair M mobile cartridge filter (CRW-M-PCD) is a compact, low-profile filtration unit for extraction of welding fumes and dry dust in industrial production. Designed for welding stations, robotic cells and automated lines, it combines two-level cartridge filtration with a compressed-air pulse cleaning system to maintain filtration performance while minimizing footprint.

Application

• Extraction and filtration of dry dust generated during welding (MIG/MAG, TIG)
• Air purification from particles produced during grinding and polishing
• Supplementary filtration for existing stations or production machines
• Support for stationary extraction in confined or dynamically changing workspaces
• Temporary extraction in areas without permanent extraction installation
• Removal of dust from cutting metals and plastics

Construction

• Two filtration levels with cartridge filters and metallic G2 pre-filter
• Compressed-air pulse cleaning system for cartridge regeneration
• Drawers for waste and dust collection
• Easy-to-operate filter cartridge module and tilting inspection flap for maintenance
• 2 swivel castors with brakes for full mobility
• Steel, welded, powder-coated housing
• Designed to cooperate with Oskar 160 or Econ 160 self-supporting standing arms and welding robots

Recommended standing OSKAR arms 160 series

• OC1620P – 101506
• OC1630P – 101508

Parameters (table)
CRW-M-PCD
air flow unit: aluminum impeller with induction motor
air flow max: 1000 m³/h
power supply: 3 ~ 400V | 50Hz
power: 1,1 kW
noise level: 73 dB(A)
Drawing No: 100001

Technical specifications

• Type / Model: Crawlair M
• Application: welding fume extraction (MIG/MAG, TIG), grinding, polishing, cutting metals and plastics
• Filtration: two filtration levels with cartridge filters
• Cleaning: compressed-air pulse cleaning system for cartridges
• Air flow max: 1000 m³/h
• Motor / Impeller: aluminum impeller with induction motor
• Power supply: 3 ~ 400V | 50Hz
• Power: 1,1 kW
• Noise level: 73 dB(A)
• Mobility: 2 swivel castors with brakes
• Maintenance: tilting inspection flap for easy maintenance and filter replacement
• Construction: steel, welded, powder-coated housing
• Waste handling: drawers for waste and dust
• Compatibility: designed for cooperation with Oskar 160 or Econ 160 standing arms; suitable for welding robots and automated lines
• Design: low-profile, compact for space-saving installation
• Drawing number: 100001
